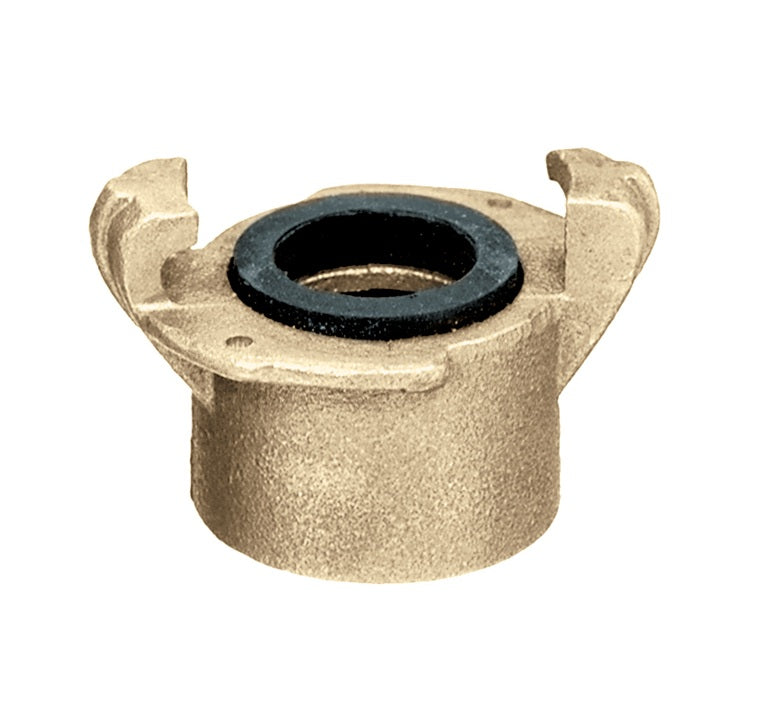

SB-BR2 by Kuriyama | SB-AL Series | Sandblast Threaded Hose Coupling | Two Lug | Standard Flow | 1" Hose ID | 1-7/8" Hose OD | 1-1/2" Female NPT | Brass

SB-BR2 by Kuriyama | SB-BR Series | Sandblast Threaded Hose Coupling | Two Lug | Standard Flow | 1" Hose ID | 1-7/8" Hose OD | 1-1/2" Female NPT | Brass

Sale price$30.57
Buy more, save moreDiscounts applied in cart/checkout.

What are the Materials?

  • Brass – ASTM B584, Grade C85700.
Part Number Hose ID
(in)		 Hose OD
(in)		 PSI Rating
at 70°F		 Gasket Flow Size NPT Thread
Size
(in) 		Weight
Each
(lbs)
SB-BR1 3/4" 1-1/2" 175 PSI SBG Standard 1-1/4" 1.02 lbs
SB-BR2 1" 1-7/8" 175 PSI SBG Standard 1-1/2" 0.84 lbs
SB-BR3 1-1/4" 2-3/8" 175 PSI SRG-2 Full 1-1/2" 3.05 lbs
SB-BR6 2" 2-7/8" 175 PSI SRG-2 Full 2" 4.20 lbs

Additional Product Data:

Series:
  • SB-BR Series
MAWP:

175

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
