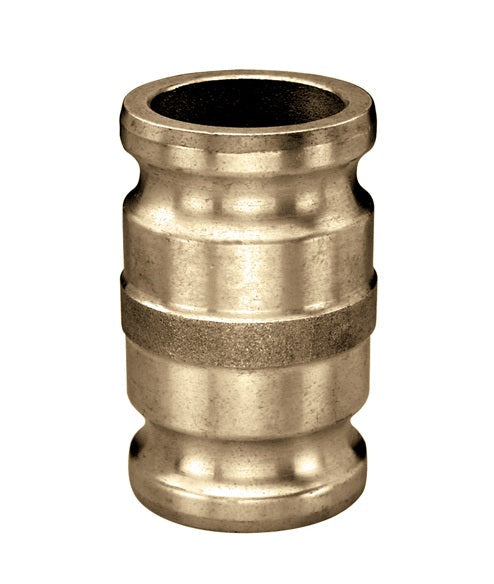

SA-B150 by Kuriyama | SA-B Series | Part AA | Cam & Groove Spool Adapter | 1-1/2" Adapter x 1-1/2" Adapter | Brass
Kuriyama of America Inc.
Cam & Groove (Camlock) Spool Adapter | SA-B Series | Part AA | Adapter x Adapter | Brass
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $57.53 |
| 40–79 | $52.02 |
| 80+ | $45.90 |
Discounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Highly resistant to damage and corrosion.
- Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.
What are the Features?
- High quality design made to withstand rigorous. applications found in industrial markets.
- Brass alloy is specially designed for high tensile strength, impact resistance, and rigidity.
What are the Materials?
- ASTM brass alloy, specially designed for high tensile strength and impact resistance.
- Complies with Mil-Spec A-A-59326 for interchangeability.
| Part Number | Male Coupler Size (in) |
Male Coupler Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|---|
| SA-B150 | 1-1/2" | 1-1/2" | 250 PSI | B584 Grade C85700 | 1.35 lbs |
| SA-B200 | 2" | 2" | 250 PSI | B584 Grade C85700 | 2.11 lbs |
| SA-B250 | 2-1/2" | 2-1/2" | 150 PSI | B584 Grade C85700 | 3.55 lbs |
| SA-B300 | 3" | 3" | 150 PSI | B584 Grade C85700 | 3.69 lbs |
| SA-B400 | 4" | 4" | 150 PSI | B584 Grade C85700 | 5.97 lbs |
Product Data:
Series:
MAWP:
250
Shape:
Straight
Cam & Groove Type:
Type AA (Spool Adapter)
Ends Configuration:
Material(s):
