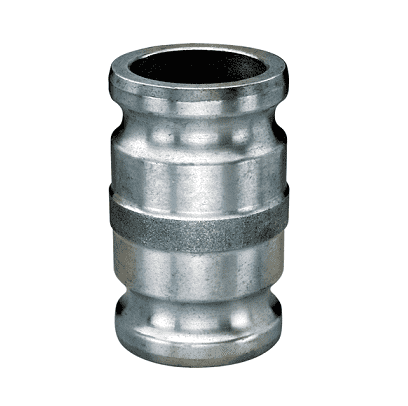

SA-A3040 by Kuriyama | Quick-Acting Special Application Coupling | Part A | 3" x 4" Spool Adapter | Aluminum

SA-A3040 by Kuriyama | Quick-Acting Special Application Coupling | Part A | 3" x 4" Spool Adapter | Aluminum

Sale price$50.23

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Part A - Reducing Coupler x Adapter - Aluminum

Buy More, Save More!
Quantity Price Each
10–39 $47.22
40–79 $42.70
80+ $37.67
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type AA (Spool Adapter)

Ends Configuration:
  • 3in Male Cam & Groove
  • 4in Male Cam & Groove
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains.
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses.
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Size Weight (Lbs.)
SA-A150 1-1/2" x 1-1/2" 0.43 lbs
SA-A200 2" x 2" 0.68 lbs
SA-A2030 2" x 3" 0.97 lbs
SA-A300 3" x 3" 1.10 lbs
SA-A3040 3" x 4" 1.78 lbs
SA-A400 4" x 4" 1.91 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
