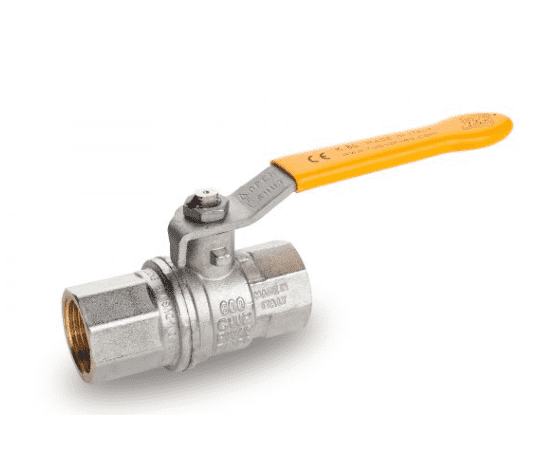

Quality: |
- 24h 100% seal test guaranteed
- Dual sealing system allows valve to be operated in either direction making installation easier
- No metal-to-metal moving parts
- No maintenance ever required
- Handle clearly shows ball position
- Silicone-free lubricant on all seals
- Chrome plated brass ball for longer life
- Handle stops on body to avoid stresses at stem
|
|
Body: |
- Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
- Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
|
|
Stem: |
- Blowout-proof nickel plated brass stem
- Two FPM O-rings at the stem for maximum safety
|
|
Sealing: |
- Pure PTFE self-lubricating seats with flexible-lip design
|
|
Threads: |
- NPT taper ANSI B.1.20.1 female by female threads
|
|
Flow: |
- Full port to DIN 3357 for maximum flow
|
|
Handle: |
- Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
- WARNING: do not exceed reasonable temperature and/or electrical load
- Handle removable with valve in service
|
|
Working Pressure & Temperature: |
- 600 PSI up to 2", 450 PSI over 2" non-shock cold working pressure
- -40°F/+350°F
- WARNING: freezing of the fluid in the installation may severely damage the valve
|
|
Upon Request: |
- AISI 316 stainless steel ball
- Glass filled PTFE seals
- Custom design
- Special configuration for industrial oxygen application
|
|
Approved by or in Compliance with: |
- Canadian standards Association (United States, Canada)
- Factory Mutual (United States)
- GOST-R (Russia)
- Hygiene and epidemic center in Moscow city (Russia)
- TSSA (Canada)
- RoHS Compliant (EU)
- Underwriters Laboratories (United States & Canada)
- Meeting WW-V-35C Federal U.S. Specification
- NOTE: approvals apply to specific configurations/sizes only.
|
|
| Part Number |
Size |
Dimensions (Inches) |
| D |
DN |
I |
L |
G |
A |
H |
CH |
| S95B41 |
1/4" |
1/4" |
0.314" |
0.472" |
1.771" |
0.885" |
3.228" |
1.563" |
0.787" |
| S95C41 |
3/8" |
3/8" |
0.393" |
0.472" |
1.771" |
0.885" |
3.228" |
1.563" |
0.787" |
| S95D41 |
1/2" |
1/2" |
0.590" |
0.610" |
2.332" |
1.161" |
3.937" |
1.695" |
0.984" |
| S95E41 |
3/4" |
3/4" |
0.787" |
0.669" |
2.519" |
1.259" |
4.724" |
1.988" |
1.220" |
| S95F41 |
1" |
1" |
0.984" |
0.826" |
3.188" |
1.594" |
4.724" |
2.153" |
1.574" |
| S95G41 |
1-1/4" |
1-1/4" |
1.259" |
0.905" |
3.661" |
1.830" |
6.220" |
2.988" |
1.929" |
| S95H41 |
1-1/2" |
1-1/2" |
1.574" |
0.905" |
4.015" |
2.007" |
6.220" |
3.236" |
2.125" |
| S95I41 |
2" |
2" |
1.968" |
1.043" |
4.763" |
2.381" |
6.220" |
3.500" |
2.696" |
| S95L41 |
2-1/2" |
2-1/2" |
2.559" |
1.260" |
6.141" |
3.070" |
10.039" |
5.196" |
3.346" |
| S95M41 |
3" |
3" |
3.149" |
1.377" |
6.968" |
3.484" |
10.039" |
5.511" |
3.897" |
| S95N41 |
4" |
4" |
3.937" |
1.633" |
8.504" |
4.252" |
10.039" |
6.062" |
4.921" |
*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4. Stem configuration of
valves over 2" is slightly different.
