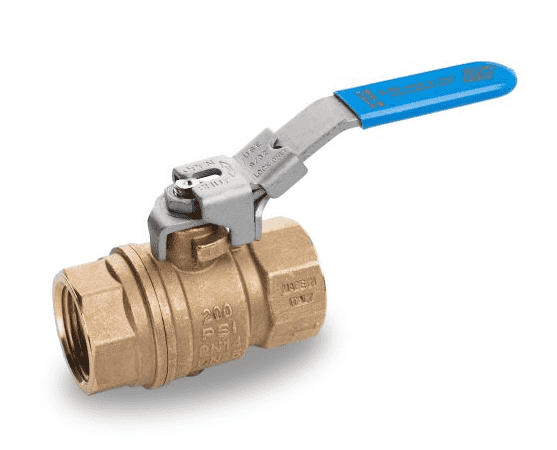

S93C41 by RuB Inc. | Full Port Exhaust Ball Valve | 3/8" Female NPT x 3/8" Female NPT | with Blue Lockable Handle | Brass | Pack of 12

S93C41 by RuB Inc. | Full Port Exhaust Ball Valve | 3/8" Female NPT x 3/8" Female NPT | with Blue Lockable Handle | Brass | Pack of 12

Sale price$249.71

RuB Inc. - Speciality Ball Valves - S93 Series - Female NPT x Female NPT Full Port Exhaust with Blue Lockable Handle

Package Quantity: 12 Units

Buy More, Save More!
Quantity Price Each
5–19 $234.73
20–59 $212.25
60+ $187.28
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/8in Female NPT
  • 3/8in Female NPT
  • Some Ends Match
Material(s):
  • Brass
Quality:
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
  • Handle stops on body to avoid stresses at stem
Body:
  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
  • The valve body includes a tapped downstream depressurization venting outlet to direct exhaust air or assemble mufflers for noise control
Stem:
  • Blowout-proof nickel plated brass stem
  • Two FPM O-rings at the stem for maximum safety
Sealing:
  • Molybdenum filled PTFE self-lubricating seats with flexible-lip design
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Flow:
  • Full port to DIN 3357 for maximum flow
Handle:
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • Handle removable with valve in service
  • WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
  • Maximum working pressure 200 PSI (CWP)
  • +15°F/+210°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
  • AISI 316 stainless steel ball
  • Custom design
  • T-handle
Approved by or in Compliance with:
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • RoHS Compliant (EU)
  • OSHA Compliant
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L G A H CH N
S93B41 1/4" 1/4" 0.314" 0.472" 1.771" 0.885" 3.759" 1.811" 0.787" 10-32 UNF
S93C41 3/8" 3/8" 0.393" 0.472" 1.771" 0.885" 3.759" 1.811" 0.787"
S93D41 1/2" 1/2" 0.590" 0.610" 2.322" 1.161" 3.759" 2.008" 0.984"
S93E41 3/4" 3/4" 0.787" 0.669" 2.519" 1.259" 4.574" 2.323" 1.220"
S93F41 1" 1" 0.984" 0.826" 3.188" 1.594" 4.574" 2.480" 1.574"
S93G41 1-1/4" 1-1/4" 1.260" 0.906" 3.661" 1.831" 6.161" 3.031" 1.929" 1/4" NPT
S93H41 1-1/2" 1-1/2" 1.575" 0.906" 4.016" 2.008" 6.161" 3.268" 2.126"
S93I41 2" 2" 1.969" 1.043" 4.764" 2.382" 6.161" 3.543" 2.697"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
