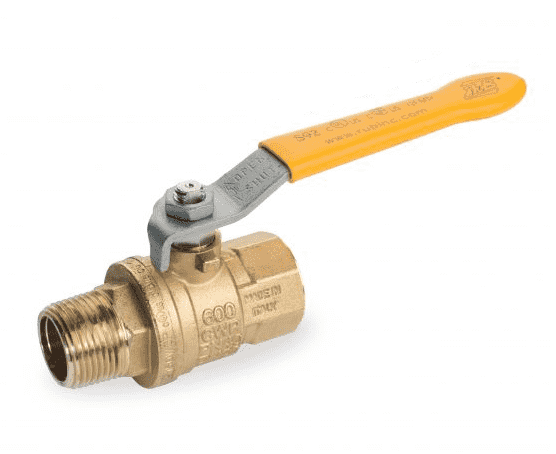

S92M42 by RuB Inc. | Full Port 2-Way Ball Valve | 3" Male NPT x 3" Female NPT | with Yellow Steel Handle | Brass

S92M42 by RuB Inc. | Full Port 2-Way Ball Valve | 3" Male NPT x 3" Female NPT | with Yellow Steel Handle | Brass

Sale price$513.05

RuB Inc. - Full Port 2-Way Ball Valves - S92 Series - Male NPT x Female NPT with Yellow Steel Handle
Buy More, Save More!
Quantity Price Each
5–14 $482.27
15–29 $436.09
30+ $384.79
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3in Male NPT
  • 3in Female NPT
Material(s):
  • Brass
Quality:
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
  • Handle stops on body to avoid stresses at stem
Body:
  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
  • Blowout-proof nickel plated brass stem
  • Pure PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
  • Triple stem seals in sizes over 2"
Sealing:
  • Glass filled pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • NPT taper ANSI B.1.20.1 male by female threads
Flow:
  • Full port to DIN 3357 for maximum flow
Handle:
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load
  • Handle removable with valve in service
Working Pressure & Temperature:
  • Maximum working pressure 600 PSI (CWP) up thru and including 2"; 450 PSI (CWP) over 2"
  • Steam rating 150 PSI (WSP)
  • -40°F/+350°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
  • AISI 316 stainless steel ball and/or stem
  • Custom design
  • Pure PTFE seals
Approved by or in Compliance with:
  • Canadian standards Association (United States, Canada)
  • Factory Mutual (United States)
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • RoHS Compliant (EU)
  • Underwriters Laboratories (United States & Canada)
  • Meeting WW-V-35C Federal U.S. Specification
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN DN1 I I1 L G A H CH
S92B42 1/4" 1/4" 0.314" 0.314" 0.472" 0.531" 2.224" 0.885" 3.228" 1.563" 0.787"
S92C42 3/8" 3/8" 0.393" 0.393" 0.472" 0.531" 2.224" 0.885" 3.228" 1.563" 0.787"
S92D42 1/2" 1/2" 0.590" 0.590" 0.610" 0.650" 2.756" 1.161" 3.937" 1.695" 0.984"
S92E42 3/4" 3/4" 0.787" 0.787" 0.669" 0.709" 2.992" 1.259" 4.724" 1.988" 1.220"
S92F42 1" 1" 0.984" 0.984" 0.826" 0.866" 3.642" 1.594" 4.724" 2.153" 1.574"
S92G42 1-1/4" 1-1/4" 1.259" 1.259" 0.905" 0.945" 4.173" 1.830" 6.220" 2.988" 1.929"
S92H42 1-1/2" 1-1/2" 1.574" 1.574" 0.905" 0.845" 4.449" 2.007" 6.220" 3.236" 2.125"
S92I42 2" 2" 1.968" 1.968" 1.043" 1.083" 5.236" 2.381" 6.220" 3.500" 2.696"
S92L42 2-1/2" 2-1/2" 2.559" 2.205" 1.260" 1.457" 7.106" 3.070" 10.039" 5.196" 3.346"
S92M42 3" 3" 3.149" 2.756" 1.377" 1.555" 8.051" 3.484" 10.039" 5.511" 3.897"
S92N42 4" 4" 3.937" 3.701" 1.633" 1.732" 9.370" 4.252" 10.039" 6.062" 4.921"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4. Stem configuration of valves over 2" is slightly different.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
