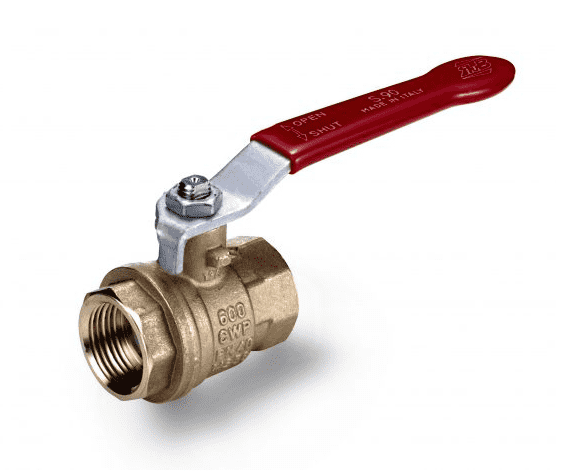

S90F41 by RuB Inc. | Economy Full Port 2-Way Ball Valve | 1" Female NPT x 1" Female NPT | with Red Steel Handle | Brass | Pack of 10

S90F41 by RuB Inc. | Economy Full Port 2-Way Ball Valve | 1" Female NPT x 1" Female NPT | with Red Steel Handle | Brass | Pack of 10

Sale price$260.87

RuB Inc. - Full Port 2-Way Ball Valves - S90 Series - Economy Female NPT x Female NPT with Red Steel Handle

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $245.22
15–29 $221.74
30+ $195.65
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Female NPT
  • 1in Female NPT
  • Some Ends Match
Material(s):
  • Brass
Quality:
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Chrome plated brass ball for longer life
  • Handle stops on body to avoid stresses at stem
Body:
  • Hot forged full port sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
Stem:
  • Blowout-proof nickel plated brass stem
  • Two FPM O-rings at the stem for maximum safety
Sealing:
  • PTFE self-lubricating seats with flexible-lip design
Threads:
  • NPT short taper female by female threads
Handle:
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load
  • Handle removable with valve in service
Working Pressure & Temperature:
  • 600 PSI non-shock cold working pressure
  • -40°F/+350°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in Compliance with:
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • RoHS Compliant (EU)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L G A H CH
S90B41 1/4" 1/4" 0.314" 0.354" 1.535" 0.767" 3.228" 1.480" 0.787"
S90C41 3/8" 3/8" 0.393" 0.354" 1.535" 0.767" 3.228" 1.480" 0.787"
S90D41 1/2" 1/2" 0.590" 0.433" 1.968" 0.984" 3.937" 1.679" 0.984"
S90E41 3/4" 3/4" 0.787" 0.472" 2.125" 1.062" 4.724" 1.956" 1.220"
S90F41 1" 1" 0.984" 0.551" 2.637" 1.318" 4.724" 2.114" 1.496"
S90G41 1-1/4" 1-1/4" 1.259" 0.590" 3.031" 1.515" 6.220" 2.858" 1.889"
S90H41 1-1/2" 1-1/2" 1.574" 0.669" 3.543" 1.771" 6.220" 3.094" 2.125"
S90I41 2" 2" 1.968" 0.748" 4.173" 2.086" 6.220" 3.370" 2.598"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
