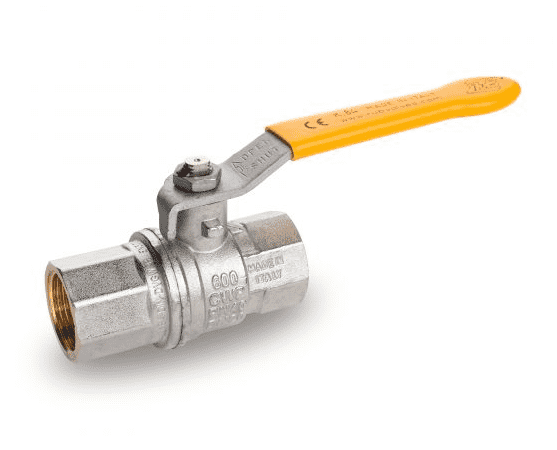

S84G05 by RuB Inc. | Metric Threaded Full Port Ball Valve | 1-1/4" Female BSPT x 1-1/4" Female BSPT | with Yellow Steel Handle | Nickel Plated Brass | Pack of 8

S84G05 by RuB Inc. | Metric Threaded Full Port Ball Valve | 1-1/4" Female BSPT x 1-1/4" Female BSPT | with Yellow Steel Handle | Nickel Plated Brass | Pack of 8

Sale price$469.53

RuB Inc. - Metric Threaded Full Port Ball Valves - K.84 Series - Female BSPT x Female BSPT - with Yellow Steel Handle

Package Quantity: 8 Units

Buy More, Save More!
Quantity Price Each
5–14 $441.36
15–29 $399.10
30+ $352.15
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/4in Female BSPT
  • 1-1/4in Female BSPT
  • Some Ends Match
Material(s):
  • Nickel-Plated Brass
Quality:
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Handle stops on body to avoid stresses at stem
  • Chrome plated brass ball for longer life with rinse hole
Body:
  • Valve length according to DIN 3202 M3 specification
  • Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
  • Hot forged sand blasted external nickel plated brass body and cap sealed with Loctite® or equivalent threads sealant
Stem:
  • Blowout-proof nickel plated brass stem
  • Two FPM O-rings at the stem for maximum safety
Sealing:
  • Pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • EN 10226-1, ISO 228 parallel female by female threads
Flow:
  • Full port to DIN 3357 for maximum flow
Handle:
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • Handle removable with valve in service
  • WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
  • 40 Bar (600 PSI) non-shock cold working pressure
  • -40°C (-40°F) / +170°C (+350°F)
  • For use with dangerous fluids temperature rating is -20°C +60°C and pressure rating is 5 Bar
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Upon request:
  • AISI 316 stainless steel ball
  • Glass filled PTFE seals
  • Custom design
PED Directive:
  • Assessment according to Pressure Equipment Directive 2014/68/UE module B+D by Pascal (1115)
Approved by or in Compliance with:
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • BSI Group (United Kingdom)
  • RoHS Compliant (EU)
  • DIN-DVGW (Deutschland)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D
(inch)		 DN
(mm)		 I
(mm)		 L
(mm)		 G
(mm)		 A
(mm)		 H
(mm)		 CH
(mm)
S84B05 1/4" 1/4" 8mm 12mm 50mm 22.5mm 82mm 38mm 20mm
S84C05 3/8" 3/8" 10mm 12mm 60mm 22.5mm 82mm 38mm 20mm
S84D05 1/2" 1/2" 15mm 15.5mm 75mm 29.5mm 100mm 43mm 25mm
S84E05 3/4" 3/4" 20mm 17mm 80mm 32mm 120mm 50mm 31mm
S84F05 1" 1" 25mm 21mm 90mm 40.5mm 120mm 54mm 40mm
S84G05 1-1/4" 1-1/4" 32mm 23mm 110mm 46.5mm 158mm 73mm 49mm
S84H05 1-1/2" 1-1/2" 40mm 23mm 120mm 51mm 158mm 79mm 54mm
S84I05 2" 2" 50mm 26.5mm 140mm 60.5mm 158mm 86mm 68.5mm
S84L05 2-1/2" 2-1/2" - - - - - - -
S84M05 3" 3" - - - - - - -
S84N05 4" 4" - - - - - - -

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.

Ball valves are marked CE on handle from 1-1/4" to 2" as follows:

CE 1115 cat IIIB+D PS: 5 GAS TS1: -20°C TS2: +60°C

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
