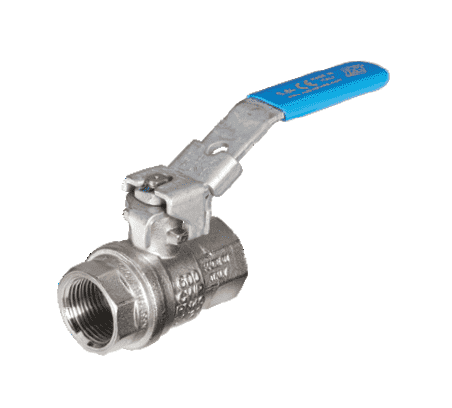

S84D59 by RuB Inc. | Metric Threaded Full Port Ball Valve | 1/2" Female BSPT x 1/2" Female BSPT | with Blue Lockable Handle | Nickel Plated Brass | Pack of 10

S84D59 by RuB Inc. | Metric Threaded Full Port Ball Valve | 1/2" Female BSPT x 1/2" Female BSPT | with Blue Lockable Handle | Nickel Plated Brass | Pack of 10

Sale price$193.03

RuB Inc. - Metric Threaded Full Port Ball Valves - S.84 Series - Female BSPT x Female BSPT - with Blue Lockable Handle

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $181.45
20–59 $164.08
60+ $144.77
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Female BSPT
  • 1/2in Female BSPT
  • Some Ends Match
Material(s):
  • Nickel-Plated Brass
Quality:
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Handle stops on body to avoid stresses at stem
  • Chrome plated brass ball for longer life with rinse hole
Body:
  • Hot forged sand blasted, nickel plated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
  • Blowout-proof nickel plated brass stem
  • Two FPM O-rings at the stem for maximum safety
Sealing:
  • Pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • ISO 7/1, BS 21 BSPT taper female by female threads
Flow:
  • Full port to DIN 3357 for maximum flow
Handle:
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • Handle removable with valve in service
  • WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
  • 40 Bar (600 PSI) up to 2", 30 Bar (450 PSI) over 2" non-shock cold working pressure
  • -40°C (-40°F)/ +170°C (+350°F)
  • For use with dangerous fluids temperature rating is -20°C +60°C and pressure rating is 5 Bar
  • AS4617 Limitation for GAS: 2100 Kpa up to 2" and 1500 Kpa from 2-1/2" to 4" rated working pressure and 0°C/ +60°C temperature
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Upon request:
  • AISI 316 stainless steel ball
  • Glass filled PTFE seals
  • Custom design
PED Directive:
  • Assessment according to Pressure Equipment Directive 2014/68/UE module B+D by Pascal (1115)
Approved by or in Compliance with:
  • The Australian Gas Association (Australia)
  • Factory Mutual (United States)
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • BSI Group (United Kingdom)
  • RoHS Compliant (EU)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D
(inch)		 DN
(mm)		 I
(mm)		 L
(mm)		 G
(mm)		 CH
(mm)
S84B59 1/4" 1/4" 8mm 12mm 45mm 22.5mm 20mm
S84C59 3/8" 3/8" 10mm 12mm 45mm 22.5mm 20mm
S84D59 1/2" 1/2" 15mm 15.5mm 59mm 29.5mm 25mm
S84E59 3/4" 3/4" 20mm 17mm 64mm 32mm 31mm
S84F59 1" 1" 25mm 21mm 81mm 40.5mm 40mm
S84G59 1-1/4" 1-1/4" 32mm 23mm 93mm 46.5mm 49mm
S84H59 1-1/2" 1-1/2" 40mm 23mm 120mm 51mm 54mm
S84I59 2" 2" 50mm 26.5mm 121mm 60.5mm 68.5mm
S84L59 2-1/2" 2-1/2" 65mm 32mm 156mm 78mm 85mm
S84M59 3" 3" 80mm 35mm 177mm 88.5mm 99mm
S84N59 4" 4" 100mm 41.5mm 216mm 108mm 125mm

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.

Stem configuration of valves over 2" is slightly different. Ball valves are marked CE on handle from 1-1/4" to 2", on body over 2" as follows:

CE 1115 cat IIIB+D PS: 5 GAS TS1: -20°C TS2: +60°C

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
