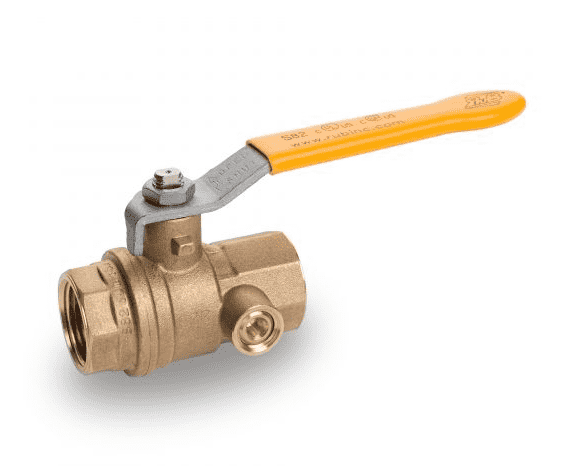

S82I41 by RuB Inc. | Gas Service Side Drain Ball Valve | 2" Female NPT x 2" Female NPT | with Yellow Steel Handle | Brass | Pack of 4

S82I41 by RuB Inc. | Gas Service Side Drain Ball Valve | 2" Female NPT x 2" Female NPT | with Yellow Steel Handle | Brass | Pack of 4

Sale price$515.19

RuB Inc. - Gas Service Ball Valves - S.82 Series - Female NPT x Female NPT - with Side Drain and Yellow Steel Handle

Package Quantity: 4 Units

Buy More, Save More!
Quantity Price Each
5–14 $484.28
15–29 $437.91
30+ $386.39
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 2in Female NPT
  • 2in Female NPT
  • Some Ends Match
Material(s):
  • Brass
Quality:
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Handle stops on body to avoid stresses at stem
  • Chrome plated brass ball for longer life
Body:
  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
  • Side drain allows easy and safe downstream line venting
Stem:
  • Blowout-proof nickel plated brass stem
  • Two FPM O-rings at the stem for maximum safety
Sealing:
  • Pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
  • 1/4" NPT side tap
Flow:
  • Full port to DIN 3357 for maximum flow
Handle:
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load
  • Handle removable with valve in service
Working Pressure & Temperature:
  • Maximum working pressure 600 PSI (CWP)
  • -40°F/+350°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
  • AISI 316 stainless steel ball and/or stem
  • Glass filled PTFE seals
  • Custom design
  • Dual side drain port
Approved by or in Compliance with:
  • Canadian standards Association (United States, Canada)
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • RoHS Complaint (Russia)
  • Underwriters Laboratories (United States & Canada)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L G A H M CH
S82D41 1/2" 1/2" 0.590" 0.610" 2.559" 1.397" 3.937" 1.679" 0.964" 0.984"
S82E41 3/4" 3/4" 0.787" 0.669" 2.736" 1.476" 4.724" 1.956" 1.063" 1.220"
S82F41 1" 1" 0.984" 0.826" 3.405" 1.811" 4.724" 2.114" 1.200" 1.574"
S82G41 1-1/4" 1-1/4" 1.259" 0.905" 3.878" 2.047" 6.220" 2.858" 1.338" 1.929"
S82H41 1-1/2" 1-1/2" 1.574" 0.905" 4.232" 2.224" 6.220" 3.094" 1.516" 2.125"
S82I41 2" 2" 1.968" 1.043" 4.960" 2.578" 6.220" 3.370" 1.752" 2.696"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
