Quality: |
- 24h 100% seal test guaranteed
- Dual sealing system allows valve to be operated in either direction making installation easier
- No metal-to-metal moving parts
- No maintenance ever required
- Handle clearly shows ball position
- Silicone-free lubricant on all seals
- Handle stops on body to avoid stresses at stem
- Chrome plated brass ball for longer life
|
|
Body: |
- Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
- Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
- Side drain allows easy and safe downstream line venting
|
|
Stem: |
- Blowout-proof nickel plated brass stem
- Two FPM O-rings at the stem for maximum safety
|
|
Sealing: |
- Pure PTFE self-lubricating seats with flexible-lip design
|
|
Threads: |
- NPT taper ANSI B.1.20.1 female by female threads
- 1/4" NPT side tap
|
|
Flow: |
- Full port to DIN 3357 for maximum flow
|
|
Handle: |
- Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
- WARNING: do not exceed reasonable temperature and/or electrical load
- Handle removable with valve in service
|
|
Working Pressure & Temperature: |
- Maximum working pressure 600 PSI (CWP)
- -40°F/+350°F
- WARNING: freezing of the fluid in the installation may severely damage the valve
|
|
Upon Request: |
- AISI 316 stainless steel ball and/or stem
- Glass filled PTFE seals
- Custom design
- Dual side drain port
|
|
Approved by or in Compliance with: |
- Canadian standards Association (United States, Canada)
- GOST-R (Russia)
- Hygiene and epidemic center in Moscow city (Russia)
- RoHS Complaint (Russia)
- Underwriters Laboratories (United States & Canada)
- NOTE: approvals apply to specific configurations/sizes only.
|
|
| Part Number |
Size |
Dimensions (Inches) |
| D |
DN |
I |
L |
G |
M |
CH |

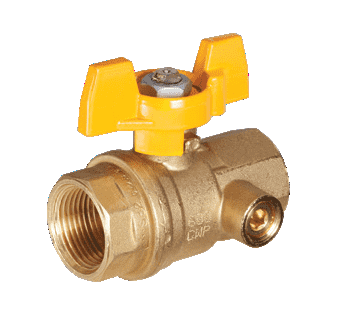

| S82D46 |
1/2" |
1/2" |
0.590" |
0.610" |
2.559" |
1.397" |
0.964" |
0.984" |
| S82E46 |
3/4" |
3/4" |
0.787" |
0.669" |
2.736" |
1.476" |
1.063" |
1.220" |
| S82F46 |
1" |
1" |
0.984" |
0.826" |
3.405" |
1.811" |
1.200" |
1.574" |
| S82G46** |
1-1/4" |
1-1/4" |
1.259" |
0.905" |
3.878" |
2.047" |
1.338" |
1.929" |
| S82H46** |
1-1/2" |
1-1/2" |
1.574" |
0.905" |
4.232" |
2.224" |
1.516" |
2.125" |
| S82I46** |
2" |
2" |
1.968" |
1.043" |
4.960" |
2.578" |
1.752" |
2.696" |
**Steel T-Handle
*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.
