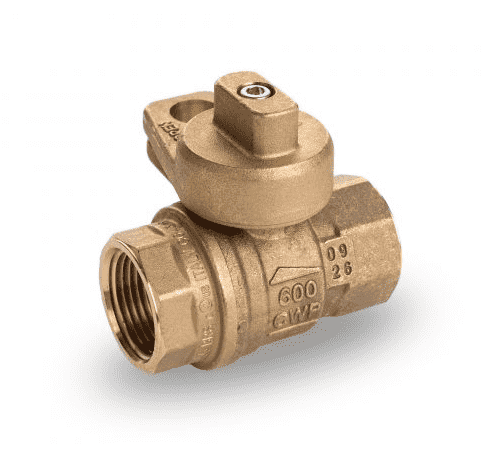

S80G41 by RuB Inc. | Gas Service Ball Valve | Gas Meter Cock | 1-1/4" Female NPT x 1-1/4" Female NPT | with Unplated Body | Brass | Pack of 8

S80G41 by RuB Inc. | Gas Service Ball Valve | Gas Meter Cock | 1-1/4" Female NPT x 1-1/4" Female NPT | with Unplated Body | Brass | Pack of 8

Sale price$505.55

RuB Inc. - Gas Service Ball Valve - S.80 Series - Gas Meter Cock - Female NPT x Female NPT - with Unplated Body

Package Quantity: 8 Units

Buy More, Save More!
Quantity Price Each
5–14 $475.22
15–29 $429.72
30+ $379.16
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/4in Female NPT
  • 1-1/4in Female NPT
  • Some Ends Match
Material(s):
  • Brass
Quality:
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Cover clearly shows ball position
  • Silicone-free lubricant on all seals
  • Handle stops on body to avoid stresses at stem
  • Chrome plated brass ball for longer life
Body:
  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Special design to combine newest technologies in valve and traditional gas-cock requirements
  • Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
  • Blowout-proof nickel plated brass stem
  • Two FPM O-rings at the stem for maximum safety
Sealing:
  • Pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Flow:
  • Full port to DIN 3357 for maximum flow
Handle:
  • Hot forged brass tamper proof lockwing
Working Pressure & Temperature:
  • Maximum working pressure 600 PSI (CWP)
  • -40°F/+350°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in Compliance with:
  • Canadian standards Association (United States, Canada)
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • RoHS Complaint (Russia)
  • Underwriters Laboratories (United States & Canada)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L G A H M N CH
S80E41 3/4" 3/4" 0.787" 0.669" 2.519" 1.259" 1.142" 1.801" 0.492" 0.449" 1.220"
S80F41 1" 1" 0.984" 0.826" 3.188" 1.594" 1.142" 1.958" 0.492" 0.449" 1.574"
S80G41 1-1/4" 1-1/4" 1.259" 0.905" 3.661" 1.830" 1.208" 2.519" 0.472" 0.563" 1.929"
S80H41 1-1/2" 1-1/2" 1.574" 0.905" 4.015" 2.007" 1.208" 2.756" 0.472" 0.563" 2.125"
S80I41 2" 2" 1.968" 1.043" 4.763" 2.381" 1.208" 3.031" 0.472" 0.563" 2.696"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
