Quality: |
- 24h 100% seal test guaranteed
- Dual sealing system allows valve to be operated in either direction making installation easier
- No metal-to-metal moving parts
- Handle clearly shows ball position
- Silicone-free lubricant on all seals
- Chrome plated brass ball for longer life
- Handle stops on body to avoid stresses at stem
|
|
Body: |
- Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
- Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
|
|
Stem: |
- Blowout-proof nickel plated brass stem
- Pure PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
- Triple stem seals in sizes over 2-1/2"
|
|
Sealing: |
- Pure PTFE self-lubricating seats with flexible-lip design
|
|
Threads: |
- NPT taper ANSI B.1.20.1 female by female threads
|
|
Flow: |
- Standard port for compact design
|
|

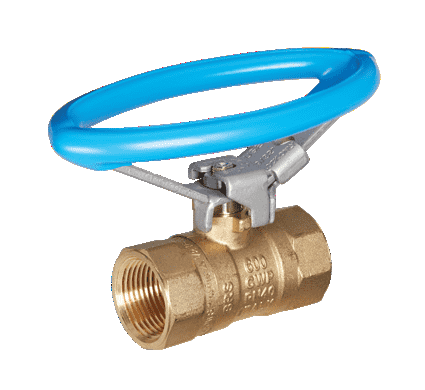

Handle: |
- Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
- Handle removable with valve in service
|
|
Working Pressure & Temperature: |
- Maximum working pressure 600 PSI (CWP)
- Steam rating 150 PSI (WSP) up thru 2"
- -40°F/+366°F
- WARNING: freezing of the fluid in the installation may severely damage the valve
|
|
Upon Request: |
- AISI 316 stainless steel ball and/or stem
- Glass filled PTFE seals
- Custom design
|
|
Approved by or in Compliance with: |
- Canadian standards Association (United States, Canada)
- Hygiene and epidemic center in Moscow city (Russia)
- RoHS Compliant (EU)
- NOTE: approvals apply to specific configurations/sizes only.
|
|
| Part Number |
Size |
Dimensions (Inches) |
| D |
DN |
I |
L |
G |
CH |
| S71D43 |
1/2" |
1/2" |
0.453" |
0.610" |
2.126" |
1.043" |
0.984" |
| S71E43 |
3/4" |
3/4" |
0.591" |
0.669" |
2.441" |
1.220" |
1.220" |
| S71F43 |
1" |
1" |
0.787" |
0.827" |
2.835" |
1.417" |
1.496" |
| S71G43 |
1-1/4" |
1-1/4" |
0.984" |
0.905" |
3.464" |
1.732" |
1.929" |
| S71H43 |
1-1/2" |
1-1/2" |
1.260" |
0.905" |
3.779" |
1.890" |
2.126" |
| S71I43 |
2" |
2" |
1.575" |
1.043" |
4.409" |
2.205" |
2.677" |
*DN shows the nominal flow diameter. Stem configuration of valves over 2-1/2" is slightly different.
