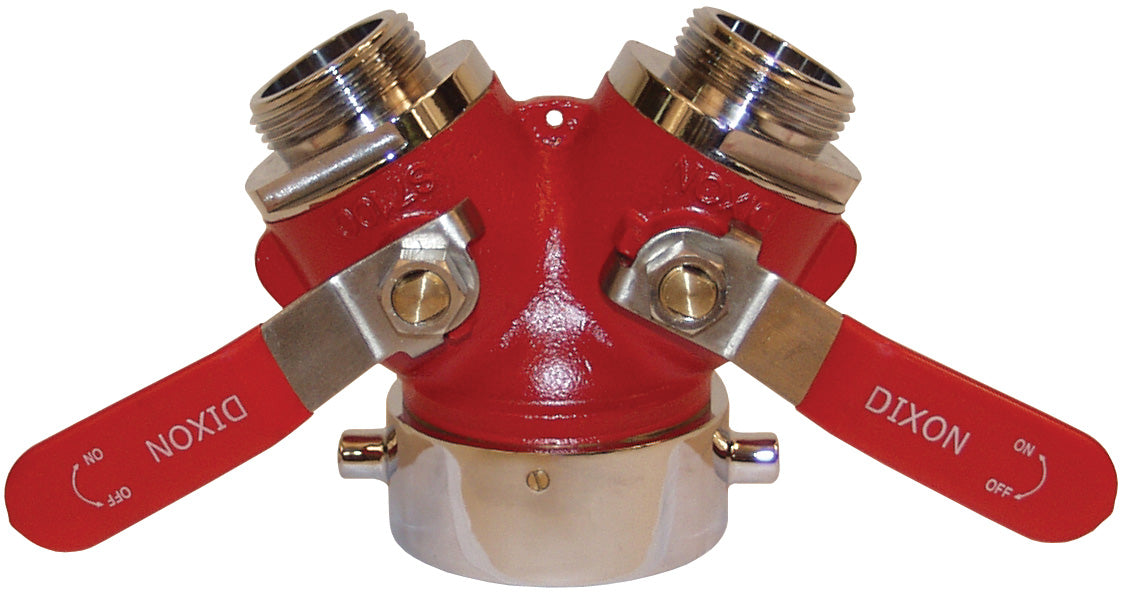

S7100 Dixon Cast Brass Full Flow 1/4 Turn Ball Type Hose Valve - Female 2-1/2" NST(NH) Swivel Inlet x 1-1/2" Male NST(NH) Outlets (Two)

S7100 Dixon Cast Brass Full Flow 1/4 Turn Ball Type Hose Valve - Female 2-1/2" NST(NH) Swivel Inlet x 1-1/2" Male NST(NH) Outlets (Two)

Sale price$396.20

Dixon Fire Fittings
Full Flow 1/4 Turn Ball Type Hose Valves - Cast Brass

Recommended for charged pre-connected hose lines. For use with water only.
Buy More, Save More!
Quantity Price Each
5–14 $372.43
15–29 $336.77
30+ $297.15
Discounts applied in cart/checkout.

Product Data:

Shape:

Y

Ends Configuration:
  • 2-1/2in Female NST
  • 2-1/2in Male NST
  • 2-1/2in Male NST
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Pin lug swivel.
  • Maximum operating pressure: 175 PSI (water only) at 70°F (21°C).
Part Number Inlet
Female Swivel		 (2) Outlets
Male		 Weight
(Lbs.)
S7100-15S 1-1/2" NPSH 1-1/2" NPSH 8.5000
S7100-15 1-1/2" NST (NH) 1-1/2" NST (NH) 8.2000
S7100 2-1/2" NST (NH) 1-1/2" NST (NH) 9.0700

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
