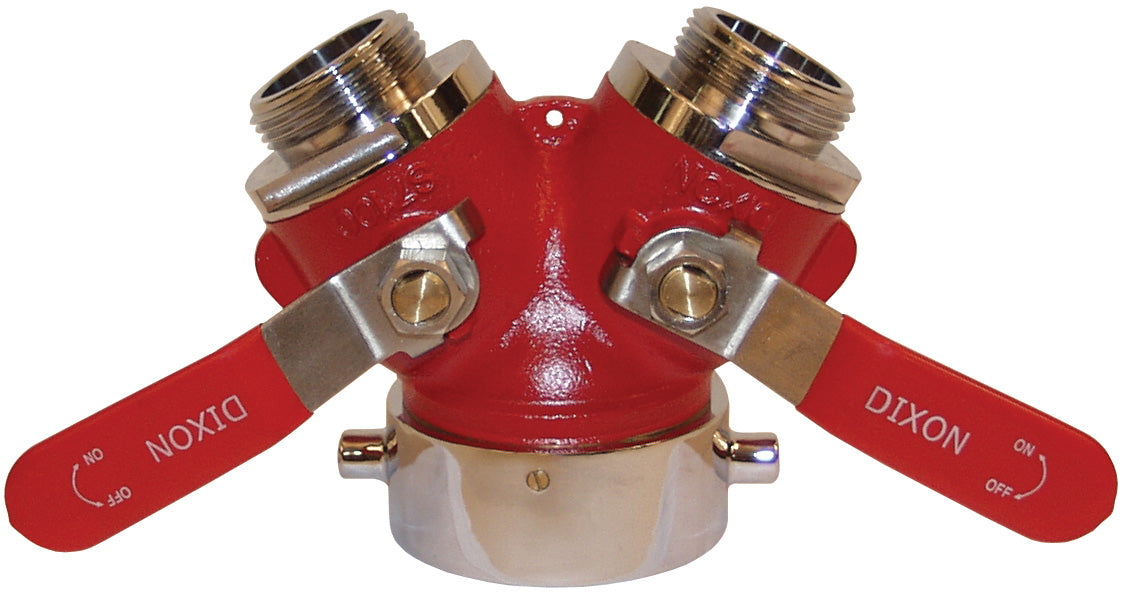

S7100-15S Dixon Cast Brass Full Flow 1/4 Turn Ball Type Hose Valve - 1-1/2" Female NPSH Swivel Inlet x 1-1/2" Male NPSH Outlets (Two)

S7100-15S Dixon Cast Brass Full Flow 1/4 Turn Ball Type Hose Valve - 1-1/2" Female NPSH Swivel Inlet x 1-1/2" Male NPSH Outlets (Two)

Sale price$398.41

Dixon Fire Fittings
Full Flow 1/4 Turn Ball Type Hose Valves - Cast Brass

Recommended for charged pre-connected hose lines. For use with water only.
Buy More, Save More!
Quantity Price Each
5–14 $374.51
15–29 $338.65
30+ $298.81
Discounts applied in cart/checkout.

Product Data:

Shape:

Y

Ends Configuration:
  • 1-1/2in Female NPSH
  • 1-1/2in Male NPSH
  • 1-1/2in Male NPSH
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Pin lug swivel.
  • Maximum operating pressure: 175 PSI (water only) at 70°F (21°C).
Part Number Inlet
Female Swivel		 (2) Outlets
Male		 Weight
(Lbs.)
S7100-15S 1-1/2" NPSH 1-1/2" NPSH 8.5000
S7100-15 1-1/2" NST (NH) 1-1/2" NST (NH) 8.2000
S7100 2-1/2" NST (NH) 1-1/2" NST (NH) 9.0700
