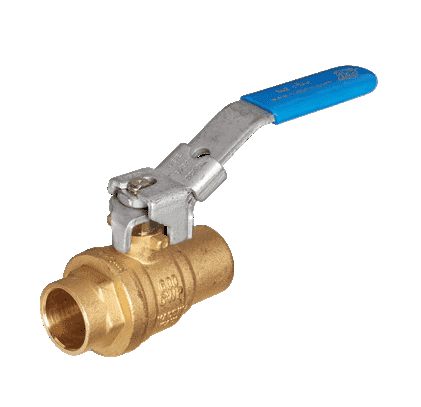

S42E15 by RuB Inc. | Full Port 2-Way Ball Valve | 3/4" Female Solder End x 3/4" Female Solder End | with Blue Lockable Handle | Brass | Pack of 12

S42E15 by RuB Inc. | Full Port 2-Way Ball Valve | 3/4" Female Solder End x 3/4" Female Solder End | with Blue Lockable Handle | Brass | Pack of 12

Sale price$286.78

RuB Inc. - Full Port 2-Way Ball Valves - S42 Series - Solder Ends (CxC) with Blue Lockable Handle

Package Quantity: 12 Units

Buy More, Save More!
Quantity Price Each
5–14 $269.57
15–29 $243.76
30+ $215.09
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Solder End
  • 3/4in Solder End
  • Some Ends Match
Material(s):
  • Brass
Quality:
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
  • Handle stops on body to avoid stresses at stem
Body:
  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
  • Blowout-proof nickel plated brass stem
  • Pure PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
Sealing:
  • Pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • Solder end female by female connections
Flow:
  • Full port to DIN 3357 for maximum flow
Handle:
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load
  • Handle removable with valve in service
Working Pressure & Temperature:
  • Maximum working pressure 600 PSI (CWP)
  • *150 psig non-shock steam working pressure. Not suitable for throttling steam
  • -40°F/+366°F (For solder joints limits consult MSS-SP-104)
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
  • AISI 316 stainless steel ball and/or stem
  • Glass filled PTFE seals
  • AISI 430 stainless steel handle
  • Custom design
Approved by or in Compliance with:
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • TSSA (Canada)
  • RoHS Compliant (EU)
  • Underwriters Laboratories (United States & Canada)
  • Meeting WW-V-35C Federal U.S. Specification
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D (Nominal) D (Actual) DN I L G
S42D15 1/2" 1/2" 0.6271" 0.590" 0.492" 2.244" 1.181"
S42E15 3/4" 3/4" 0.8771" 0.787" 0.748" 2.854" 1.476"
S42F15 1" 1" 1.1279" 0.984" 0.905" 3.346" 1.673"
S42G15 1-1/4" 1-1/4" 1.3779" 1.259" 0.964" 3.819" 1.909"
S42H15 1-1/2" 1-1/2" 1.6279" 1.574" 1.102" 4.488" 2.244"
S42I15 2" 2" 2.1279" 1.968" 1.338" 5.433" 2.716"
S42L15 2-1/2" 2-1/2" 2.628" 2.559" 1.476" 6.614" 3.307"
S42M15 3" 3" 3.128" 3.149" 1.673" 7.598" 3.799"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4. Stem configuration of valves over 2" is slightly different.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
