Quality: |
- 24h 100% seal test guaranteed
- Dual sealing system allows valve to be operated in either direction making installation easier
- No metal-to-metal moving parts
- Handle clearly shows ball position
- Silicone-free lubricant on all seals
- Chrome plated brass ball for longer life
- Handle stops on body to avoid stresses at stem
|
|
Body: |
- Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
- Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
|
|
Stem: |
- Blowout-proof nickel plated brass stem
- Pure PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
|
|
Sealing: |
- Pure PTFE self-lubricating seats with flexible-lip design
|
|
Threads: |
- Solder end female by female connections
|
|
Flow: |
- Full port to DIN 3357 for maximum flow
|
|
Handle: |
- Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
- WARNING: do not exceed reasonable temperature and/or electrical load
- Handle removable with valve in service
|
|
Working Pressure & Temperature: |
- Maximum working pressure 600 PSI (CWP)
- *150 psig non-shock steam working pressure. Not suitable for throttling steam
- -40°F/+366°F (For solder joints limits consult MSS-SP-104)
- WARNING: freezing of the fluid in the installation may severely damage the valve
|
|
Upon Request: |
- AISI 316 stainless steel ball and/or stem
- Glass filled PTFE seals
- AISI 430 stainless steel handle
- Custom design
|
|
Approved by or in Compliance with: |
- GOST-R (Russia)
- Hygiene and epidemic center in Moscow city (Russia)
- TSSA (Canada)
- RoHS Compliant (EU)
- Underwriters Laboratories (United States & Canada)
- Meeting WW-V-35C Federal U.S. Specification
- NOTE: approvals apply to specific configurations/sizes only.
|
|
| Part Number |
Size |
Dimensions (Inches) |
| D (Nominal) |
D (Actual) |
DN |
I |
L |
G |

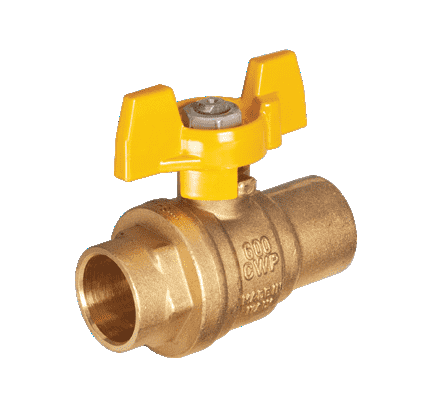

| S42D16 |
1/2" |
1/2" |
0.6271" |
0.590" |
0.492" |
2.244" |
1.181" |
| S42E16 |
3/4" |
3/4" |
0.8771" |
0.787" |
0.748" |
2.854" |
1.476" |
| S42F16 |
1" |
1" |
1.1279" |
0.984" |
0.905" |
3.346" |
1.673" |
| S42G16** |
1-1/4" |
1-1/4" |
1.3779" |
1.259" |
0.964" |
3.819" |
1.909" |
| S42H16** |
1-1/2" |
1-1/2" |
1.6279" |
1.574" |
1.102" |
4.488" |
2.244" |
| S42I16** |
2" |
2" |
2.1279" |
1.968" |
1.338" |
5.433" |
2.716" |
** Steel T-Handle
*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4. Stem configuration of valves over 2" is slightly different.
