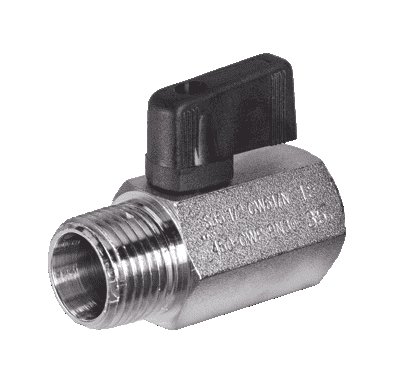

S35AZ0 by RuB Inc. | High Pressure Mini Ball Valve | 1/8" Male NPT x 1/8" Female NPT | with Black Nylon Wedge Handle | Brass

S35AZ0 by RuB Inc. | High Pressure Mini Ball Valve | 1/8" Male NPT x 1/8" Female NPT | with Black Nylon Wedge Handle | Brass

Sale price$12.77

RuB Inc. - Mini Ball Valves - S35 Series - High Pressure - Male NPT x Female NPT - with Black Nylon Wedge Handle

In stock
Buy More, Save More!
Quantity Price Each
10–39 $12.00
40–79 $10.85
80+ $9.58
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/8in Male NPT
  • 1/8in Female NPT
Material(s):
  • Brass
Quality:
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle/stem clearly shows ball position
  • Silicone-free lubricant on all seals
  • Each valve is seal tested for maximum safety
  • Chrome plated brass ball for longer life
Body:
  • One piece drawn sand blasted brass body with extremely compact design
  • Finest brass according to EN 12164 specification
  • Patent n. 7011-B/89
Stem:
  • Blowout-proof brass stem with FPM O-ring
Sealing:
  • Pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Handle:
  • Reinforced nylon back wedge handle
  • Handle removable with valve in service
  • WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
  • Maximum working pressure: 450 PSI non-shock cold working pressure
  • -4°F/+200°F
  • +250°F screw driver version and metal wedge handle
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
  • Aluminum body
  • Additional connection options
  • ISO 7/1 BSPT taper threads
  • Dezincification resistant brass CW602N
Approved by or in Compliance with:
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • RoHS Compliant (EU)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L G A H CH
S35AZ0 1/8" 1/8" 0.236" 0.354" 1.712" 0.905" 0.885" 1.220" 0.826"
S35BZ0 1/4" 1/4" 0.314" 0.472" 1.712" 0.905" 0.885" 1.220" 0.826"
S35CZ0 3/8" 3/8" 0.314" 0.472" 1.712" 0.905" 0.885" 1.220" 0.826"
S35DZ0 1/2" 1/2" 0.393" 0.610" 2.106" 1.102" 0.885" 1.299" 0.984"

*DN shows the nominal flow diameter.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
