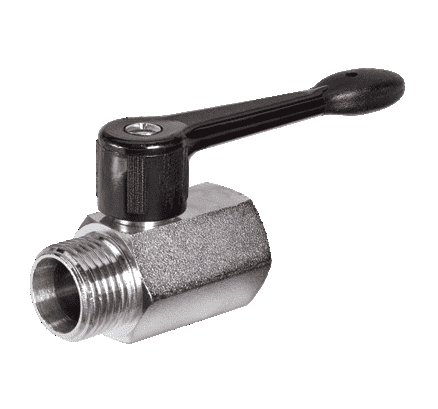

S34AZ0 by RuB Inc. | Mini Ball Valve | 1/8" Male NPT x 1/8" Female NPT | with Black Nylon Lever | Brass | Pack of 18

S34AZ0 by RuB Inc. | Mini Ball Valve | 1/8" Male NPT x 1/8" Female NPT | with Black Nylon Lever | Brass | Pack of 18

Sale price$191.21

RuB Inc. - Mini Ball Valves - S34 Series - Male NPT x Female NPT - with Black Nylon Lever

Package Quantity: 18 Units

Buy More, Save More!
Quantity Price Each
5–19 $179.74
20–59 $162.53
60+ $143.41
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/8in Male NPT
  • 1/8in Female NPT
Material(s):
  • Chrome Plated Brass
Quality:
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
Body:
  • One piece drawn sand blasted brass body incorporating stem neck which provides excellent guidance of the stem
  • Finest brass according to EN 12164 specification
Stem:
  • Two FPM O-rings at the stem for maximum safety
Sealing:
  • Pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Handle:
  • Lever and T-handle clearly show ball position
  • Nylon back lever or T-handle removable with valve in service
Working Pressure & Temperature:
  • Maximum working pressure: 200 PSI non-shock cold working pressure
  • -4°F/+200°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in Compliance with:
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • RoHS Compliant (EU)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L G CH
S34AZ0 1/8" 1/8" 0.236" 0.354" 1.712" 0.905" 0.826"
S34BZ0 1/4" 1/4" 0.314" 0.472" 1.712" 0.905" 0.826"
S34CZ0 3/8" 3/8" 0.314" 0.472" 1.712" 0.905" 0.826"
S34DZ0 1/2" 1/2" 0.393" 0.610" 2.106" 1.102" 0.984"

*DN shows the nominal flow diameter.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
