S3010H-Z by ZSi-Foster | Strut Mount Beta Clamp | Smoothie Standard Series | For 5/8" Hose | Polypropylene/Steel

S3010H-Z by ZSi-Foster | Strut Mount Beta Clamp | Smoothie Standard Series | For 5/8" Hose | Polypropylene/Steel

Sale price$11.36
Buy more, save moreDiscounts applied in cart/checkout.
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Material:
  • Cushion: Polypropylene
  • Components: Steel
Installation:

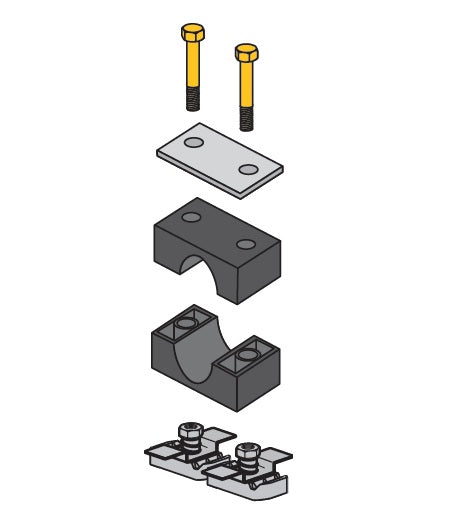

Assembly Includes:
Quantity Description
2 Each Hex Bolts
1 Each Cover Plate
1 Set Cushions
2 Each Strut Nuts
Part Number Clamp for:
SAE 100R1
Hose Size		 Bolt
S2004H-Z 1/4" 1/4-20 x 1-3/8
S2006H-Z 3/8" 1/4-20 x 1-3/8
S3008H-Z 1/2" 1/4-20 x 1-1/2
S3010H-Z 5/8" 1/4-20 x 1-1/2
S4012H-Z 3/4" 1/4-20 x 1-3/4
S5016H-Z 1" 1/4-20 x 2-1/2

Additional Product Data:

Series:
  • Smoothie Standard Series
Maximum Clamp I.D.:

0.625"

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
