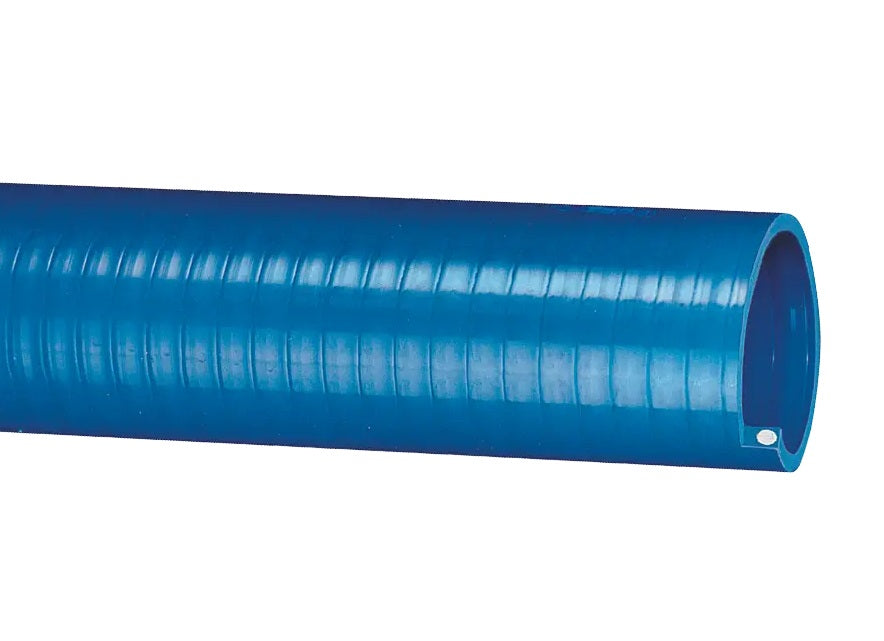

S100X100 Tigerflex® by Kuriyama | S™ Series | Heavy-Duty Liquid Suction Hose | PVC | 1" ID | 1.26" OD | 100ft Length
p>Kuriyama of America Inc.
Tigerflex® | S™ Series | Heavy-Duty Liquid Suction Hose | PVC
Tigerflex® | S™ Series | Heavy-Duty Liquid Suction Hose | PVC
Engineered for rugged water handling.
Ideal for irrigation lines, construction and rental dewatering pumps, trash pumps, and heavy-duty suction applications.
Made in the USA.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $245.89 |
| 15–29 | $222.34 |
| 30+ | $196.19 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
100
Tubing Construction:
Specifications and Approvals:
| Applications: | Irrigation lines. Pumps, rental and construction dewatering. Pumps, trash. Water suction - heavy duty. |
||
|---|---|---|---|
| Tube: | PVC. | Reinforcement: | Rigid PVC helix. |
| Cover: | - | Service Temperature Range: | -4°F (-20°C) to +150°F (+65°C) (Actual service temperature range is application dependent) |
| Specifications: | Phthalate Free (10) RoHS (11) For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF. |
||
| What are the Features? | |||
|
|||
| Part Number 100ft |
ID | OD | Working Pressure (PSI) |
Vacuum Rating in Hg |
Min. Bending Radius |
Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F |
at 104°F |
at 68°F |
at 104°F |
at 68°F |
lbs/ft | |
| S100X100 | 1" | 25.4mm | 1.26" | 32.0mm | 100 PSI | 65 PSI | Full | 28 in Hg | 3" | 0.27lbs |
| S125X100 | 1-1/4" | 31.7mm | 1.56" | 39.6mm | 100 PSI | 65 PSI | Full | 26 in Hg | 4" | 0.36lbs |
| S150X100 | 1-1/2" | 38.1mm | 1.83" | 46.5mm | 100 PSI | 65 PSI | Full | 26 in Hg | 5" | 0.48lbs |
| S200X100 | 2" | 50.8mm | 2.38" | 60.4mm | 100 PSI | 65 PSI | Full | 26 in Hg | 7" | 0.71lbs |
| S300X100 | 3" | 76.2mm | 3.44" | 87.4mm | 70 PSI | 45 PSI | Full | 26 in Hg | 10" | 1.25lbs |
