S1004R by ZSi-Foster | C-Rail Mount Beta Clamp | Standard Series | For 1/4" Tube | Polypropylene/Steel

S1004R by ZSi-Foster | C-Rail Mount Beta Clamp | Standard Series | For 1/4" Tube | Polypropylene/Steel

Minimum Order Quantity: 5 Units

Sale price$8.16

ZSI-Foster
Beta Hydraulic Clamps - Standard Series - C-Rail Mount - Polypropylene / Steel

- Cushions are Polypropylene (Green Color).

- Recommended for systems with less than 1,500 psi (103 bar) without dynamic loads.

- Use for standard hydraulics, general pipe construction, electrical cables, and general duty piping applications subject to moderate levels of shock and vibration.
Buy More, Save More!
Quantity Price Each
20–39 $7.67
40–79 $6.94
80+ $6.12
Discounts applied in cart/checkout.

Product Data:

Series:
  • Standard Series
Maximum Clamp I.D.:

0.25"
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Components: Steel
  • Cushion: Polypropylene (Green)
Installation:

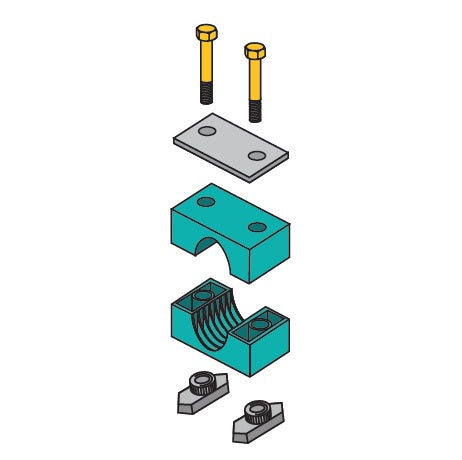

Assembly Includes:
Quantity Description
2 Each Hex Bolts
1 Each Cover Plate
1 Set Cushions
2 Each C-Rail Nuts
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Bolt Length
- S1007R 1/8" 1-1/4"
S1004R S2009R 1/4" Tube: 1-1/4"
Pipe: 1-3/8"
S1006R S2011R 3/8" Tube: 1-1/4"
Pipe: 1-3/8"
- S3014R 1/2" 1-1/2"
S2010R - 5/8" 1-3/8"
S3012R S4017R 3/4" Tube: 1-1/2"
Pipe: 1-3/4"
S3015R - 7/8" 1-1/2"
S3016R S5021R 1" Tube: 1-1/2"
Pipe: 2-1/2"
S4018R - 1-1/8" 1-3/4"
S5020R S5027R 1-1/4" 2-1/2"
S5024R S6030R 1-1/2" Tube: 2-1/2"
Pipe: 2-3/4"
S6028R - 1-3/4" 2-3/4"
S6032R S7038R 2" Tube: 2-3/4"
Pipe: 4"
S7040R - 2-1/2" 4"
S7044R - 2-3/4" 4"
S7048R - 3" 4"
