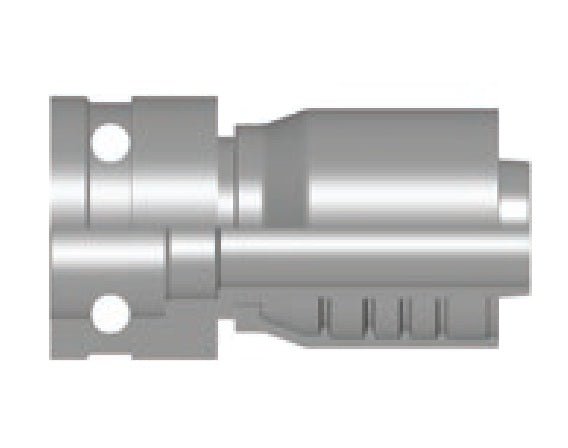

S-3232-SSLF Staplelok by Kuriyama | Super Rapid Staplelok Mining Fitting | -32 Hose Barb x -32 Female Staplelok End | Steel
Kuriyama of America Inc.
Staplelok | Super Rapid Staplelok Mining Fitting | Hose Barb x Female Staplelok End
MSHA Approved Mining Fitting.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $243.48 |
| 15–29 | $220.17 |
| 30+ | $194.27 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
| Specifications: | |||
|---|---|---|---|
|
| Super Rapid Staplelok Female | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
|||||||||
| Part Number | Dash Size | Hose ID | Coupling Diameter |
C Cut-Off Factor |
Weight | ||||
| in | mm | Dash Size |
Size (mm) | (mm) | (lbs/each) | ||||
| S-3232-SSLF | 32 | 2" | 50.8mm | 32 | 50mm | 83.2mm | 9.19 lbs | ||
| Super Rapid Staplelok Male | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
|||||||||
| Part Number | Dash Size | Hose ID | Coupling Diameter |
C Cut-Off Factor |
Weight | ||||
| in | mm | Dash Size |
Size (mm) | (mm) | (lbs/each) | ||||
| S-1212-SSLM | 12 | 3/4" | 19.0mm | 12 | 22mm | 47.1mm | 0.69 lbs | ||
| S-1616-SSLM | 16 | 1" | 25.4mm | 16 | 31mm | 66.1mm | 1.25 lbs | ||
| S-3232-SSLM | 32 | 2" | 50.8mm | 32 | 50mm | 82.7mm | 4.70 lbs | ||
| Super Rapid Staplelok Staples | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
|||||||||
| Part Number | Dash Size | Hose ID | Weight | ||||||
| in | mm | (lbs/each) | |||||||
| SRS-SS-12D | 12 | 3/4" | 19.0mm | 0.10 lbs | |||||
| SRS-SS-16D | 16 | 1" | 25.4mm | 0.28 lbs | |||||
| SRS-SS-24D | 24 | 1-1/2" | 38.1mm | 0.36 lbs | |||||
| SRS-SS-32D | 32 | 2" | 50.8mm | 0.40 lbs | |||||
