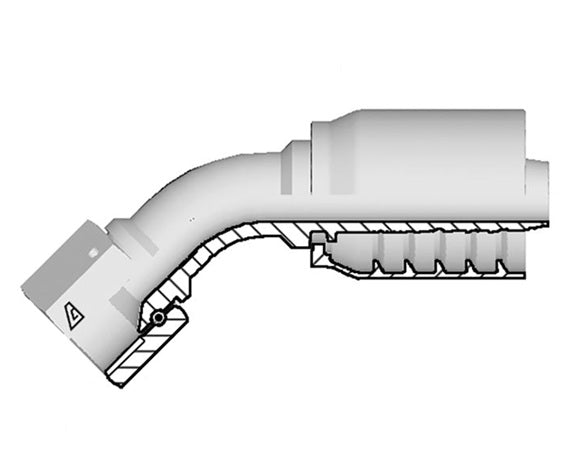

S-3232-FJ45 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | 45° Elbow | Medium Drop | -32 Female 37° JIC Swivel x -32 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | with Stem Hexagon | 45° Elbow | Medium Drop | Female 37° JIC Swivel x Hose Barb
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $199.99 |
| 20–59 | $180.85 |
| 60+ | $159.57 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | F Thread | C Cut-Off Factor |
D Drop | Hex Dia. CH1 |
Weight | |||
| Dash Size |
in | mm | Dash Size |
Size (in) - TPI |
mm | in | mm | lbs/each | |
| S-0606-FJ45 | -06 | 3/8" | 9.5mm | -06 | 9/16-18 | 46.3mm | 11.0mm | 19mm | 0.25 lbs |
| S-0808-FJ45 | -08 | 1/2" | 12.7mm | -08 | 3/4-16 | 51.6mm | 15.0mm | 25mm | 0.36 lbs |
| S-1010-FJ45 | -10 | 5/8" | 15.9mm | -10 | 7/8-14 | 62.2mm | 19.0mm | 27mm | 0.58 lbs |
| S-1212-FJ45 | -12 | 3/4" | 19.1mm | -12 | 1 1/16-12 | 67.5mm | 21.0mm | 32mm | 0.90 lbs |
| S-1216-FJ45 | -12 | 3/4" | 19.1mm | -16 | 1-5/16-12 | 71.4mm | 26.0mm | 38mm | 1.04 lbs |
| S-1616-FJ45 | -16 | 1" | 25.4mm | -16 | 1-5/16-12 | 79.4mm | 24.0mm | 38mm | 1.57 lbs |
| S-2020-FJ45 | -20 | 1-1/4" | 31.8mm | -20 | 1-5/8-12 | 98.0mm | 37.0mm | 50mm | 2.31 lbs |
| S-2424-FJ45 | -24 | 1-1/2" | 38.1mm | -24 | 1-7/8-12 | 118.0mm | 43.50mm | 55mm | 3.39 lbs |
| S-3232-FJ45 | -32 | 2" | 50.8mm | -32 | 2-1/2-12 | 162.3mm | 51.5mm | 70mm | 4.83 lbs |
