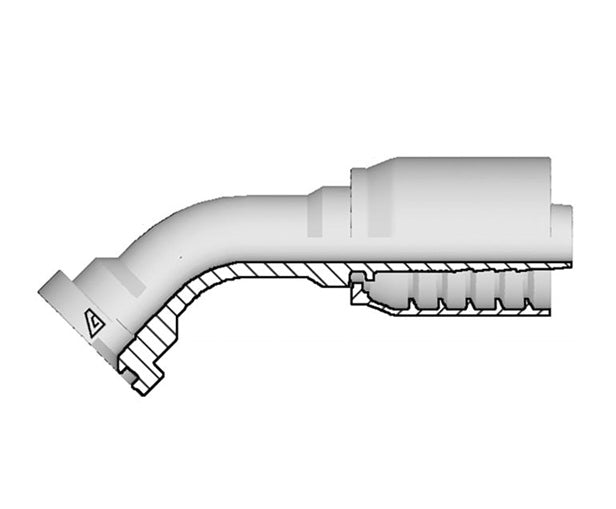

S-2432-C624 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -32 Code 62 Flange x -24 Hose ID | 6000 PSI | Steel
Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 45° Elbow | Code 62 Flange x Hose Barb
- SAE J518
- 6000 PSI
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $157.03 |
| 20–59 | $141.99 |
| 60+ | $125.29 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
Compatible Series:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | Q Flange | C Cut-Off Factor |
D Drop Factor |
Flange Dash Size |
Weight | |||
| Dash Size |
in | mm | in | mm | mm | mm | lbs/each | ||
| S-1212-C624 | -12 | 3/4" | 19.0mm | 1.63" | 41.3mm | 75.0mm | 30.0mm | -12 | 0.96 lbs |
| S-1216-C624 | -12 | 3/4" | 19.0mm | 1.88" | 47.6mm | 81.0mm | 33.0mm | -16 | 1.16 lbs |
| S-1612-C624 | -16 | 1" | 25.4mm | 1.63" | 41.3mm | 77.0mm | 29.5mm | -12 | 1.29 lbs |
| S-1616-C624 | -16 | 1" | 25.4mm | 1.88" | 47.6mm | 96.7mm | 36.0mm | -16 | 1.52 lbs |
| S-1620-C624 | -16 | 1" | 25.4mm | 2.13" | 54.0mm | 96.0mm | 44.0mm | -20 | 1.86 lbs |
| S-2016-C624 | -20 | 1" | 25.4mm | 1.88" | 47.6mm | 97.0mm | 34.0mm | -16 | 2.00 lbs |
| S-2020-C624 | -20 | 1-1/4" | 31.8mm | 2.13" | 54.0mm | 102.0mm | 41.0mm | -20 | 2.18 lbs |
| S-2024-C624 | -20 | 1-1/4" | 31.8mm | 2.50" | 63.5mm | 111.7mm | 48.0mm | -24 | 2.95 lbs |
| S-2424-C624 | -24 | 1-1/2" | 38.1mm | 2.50" | 63.5mm | 143.0mm | 48.0mm | -24 | 3.60 lbs |
| S-2432-C624 | -24 | 1-1/2" | 38.1mm | 3.13" | 79.4mm | 137.0mm | 55.0mm | -32 | 4.61 lbs |
| S-3232-C624 | -32 | 2" | 50.8mm | 3.13" | 79.4mm | 177.0mm | 61.0mm | -32 | 4.83 lbs |
