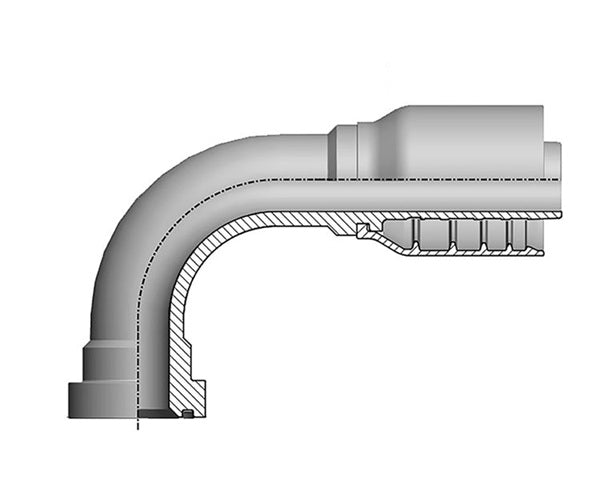

S-2424-CFL9 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | -24 CAT Flange x -24 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 90° Elbow | CAT Flange x Hose Barb
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $179.33 |
| 20–59 | $162.16 |
| 60+ | $143.09 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | Q Flange | C Cut-Off Factor |
T Thickness |
D Drop |
Flange Dash Size |
Weight | |||
| Dash Size |
in | mm | in | mm | mm | mm | mm | lbs/each | ||
| S-1212-CFL9 | -12 | 3/4" | 19.0mm | 1.63" | 41.3mm | 67.0mm | 14.3mm | 67.0mm | -12 | 1.20 lbs |
| S-1216-CFL9 | -12 | 3/4" | 19.0mm | 1.88" | 47.6mm | 69.0mm | 14.3mm | 70.0mm | -16 | 1.40 lbs |
| S-1616-CFL9 | -16 | 1" | 25.4mm | 1.88" | 47.6mm | 85.0mm | 14.3mm | 79.0mm | -16 | 1.99 lbs |
| S-1620-CFL9 | -16 | 1" | 25.4mm | 2.13" | 54.0mm | 80.0mm | 14.3mm | 82.5mm | -20 | 2.18 lbs |
| S-2020-CFL9 | -20 | 1-1/4" | 31.8mm | 2.13" | 54.0mm | 96.0mm | 14.3mm | 93.0mm | -20 | 2.98 lbs |
| S-2024-CFL9 | -20 | 1-1/4" | 31.8mm | 2.50" | 63.5mm | 97.0mm | 14.3mm | 101.0mm | -24 | 3.41 lbs |
| S-2424-CFL9 | -24 | 1-1/2" | 38.1mm | 2.50" | 63.5mm | 117.0mm | 14.3mm | 109.0mm | -24 | 4.01 lbs |
| S-3232-CFL9 | -32 | 2" | 50.8mm | 3.12" | 79.4mm | 141.0mm | 14.3mm | 138.5mm | -32 | 5.25 lbs |
