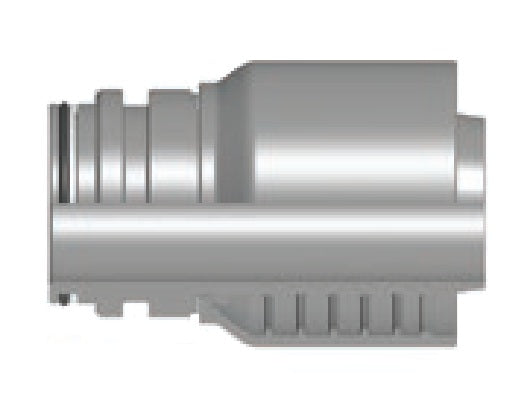

S-2020-SLMS Staplelok by Kuriyama | Rapid Staplelok Mining Fitting | -20 Hose Barb x -20 Male Staplelok End | Steel
Kuriyama of America Inc.
Staplelok | Rapid Staplelok Mining Fitting | Hose Barb x Male Staplelok End
MSHA Approved Mining Fitting.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $66.22 |
| 40–79 | $59.88 |
| 80+ | $52.84 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
| Specifications: | |||
|---|---|---|---|
|
| Rapid Staplelok Male | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
|||||||||
| Part Number | Dash Size | Hose ID | Coupling Diameter |
C Cut-Off Factor |
Weight | ||||
| in | mm | Dash Size |
Size (mm) | (mm) | (lbs/each) | ||||
| B-1212-SLMS | 12 | 3/4" | 19.0mm | 12 | 24mm | 38.1mm | 0.61 lbs | ||
| B-1616-SLMS | 16 | 1" | 25.4mm | 16 | 31mm | 46.1mm | 1.17 lbs | ||
| B-2020-SLMS | 20 | 1-1/4" | 31.8mm | 20 | 38mm | 46.9mm | 1.77 lbs | ||
| S-2424-SLMS | 24 | 1-1/2" | 38.1mm | 24 | 47mm | 54.5mm | 2.38 lbs | ||
| Rapid Staplelok Staples | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
|||||||||
| Part Number | Dash Size | Hose ID | Weight | ||||||
| in | mm | (lbs/each) | |||||||
| RS-SS-04D | 04 | 1/4" | 6.4mm | 0.03 lbs | |||||
| RS-SS-06D | 06 | 3/8" | 9.5mm | 0.03 lbs | |||||
| RS-SS-08D | 08 | 1/2" | 12.7mm | 0.04 lbs | |||||
| RS-SS-12D | 12 | 3/4" | 19.0mm | 0.04 lbs | |||||
| RS-SS-16D | 16 | 1" | 25.4mm | 0.12 lbs | |||||
| RS-SS-20D | 20 | 1-1/4" | 31.8mm | 0.14 lbs | |||||
| RS-SS-32D | 32 | 2" | 50.8mm | 0.17 lbs | |||||
