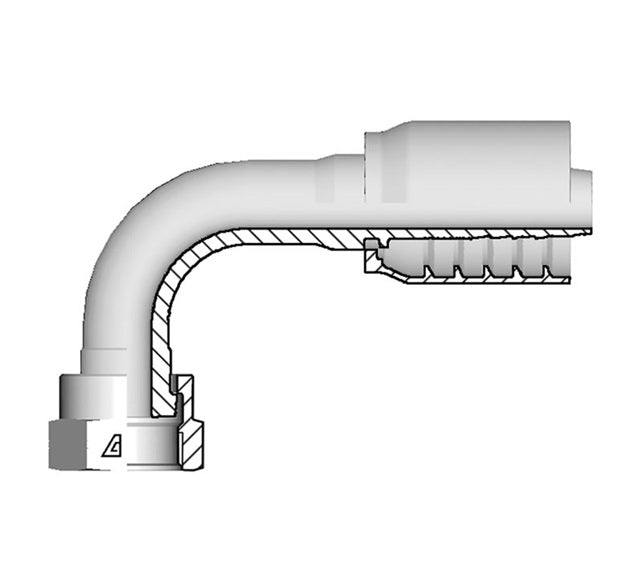

S-2020-FO9M Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Medium Drop | -20 Female ORFS x -20 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 90° Elbow | Medium Drop | Female ORFS (O-Ring Face Seal) x Hose Barb
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $107.17 |
| 20–59 | $96.91 |
| 60+ | $85.51 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | F Thread | C Cut-Off Factor |
D Drop |
Hex Dia. | Weight | |||
| Dash Size |
in | mm | Dash Size |
Size (in) - TPI |
mm | mm | CH1 mm |
lbs/each | |
| S-0606-FO9M | -06 | 3/8" | 9.5mm | -06 | 11/16-16 | 43mm | 38mm | 22mm | 0.27 lbs |
| S-0808-FO9M | -08 | 1/2" | 12.7mm | -08 | 13/16-16 | 35mm | 42mm | 24mm | 0.33 lbs |
| S-1010-FO9M | -10 | 5/8" | 15.9mm | -10 | 1-14 | 56mm | 44mm | 30mm | 0.68 lbs |
| S-1212-FO9M | -12 | 3/4" | 19.1mm | -12 | 1-3/16-12 | 63mm | 58mm | 36mm | 1.10 lbs |
| S-1216-FO9M | -12 | 3/4" | 19.1mm | -16 | 1-7/16-12 | 70mm | 58mm | 41mm | 1.57 lbs |
| S-1616-FO9M | -16 | 1" | 25.4mm | -16 | 1-7/16-12 | 80mm | 66mm | 41mm | 1.58 lbs |
| S-2020-FO9M | -20 | 1-1/4" | 31.8mm | -20 | 1-11/16-12 | 101mm | 81mm | 50mm | 2.50 lbs |
