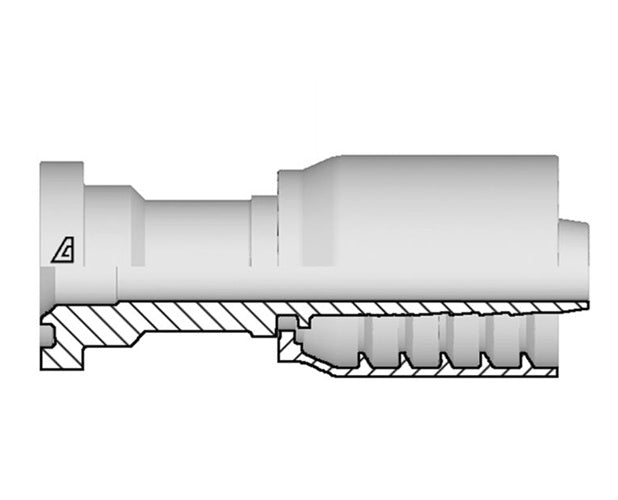

S-2020-C62S Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -20 Code 62 Flange x -20 Hose ID | 6000 PSI | Steel
Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Code 62 Flange x Hose Barb
- SAE J518
- 6000 PSI
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $67.81 |
| 40–79 | $61.32 |
| 80+ | $54.11 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
Compatible Series:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | Q Flange | C Cut-Off Factor |
Flange Dash Size |
Weight | ||||
| Dash Size |
in | mm | in | mm | mm | lbs/each | |||
| S-1212-C62S | -12 | 3/4" | 19.1mm | 1.63" | 41.3mm | 53.1mm | -12 | 0.85 lbs | |
| S-1216-C62S | -12 | 3/4" | 19.1mm | 1.88" | 47.6mm | 56.5mm | -16 | 1.00 lbs | |
| S-1612-C62S | -16 | 1" | 25.4mm | 1.63" | 41.3mm | 59.1mm | -12 | 1.15 lbs | |
| S-1616-C62S | -16 | 1" | 25.4mm | 1.88" | 47.6mm | 59.1mm | -16 | 1.32 lbs | |
| S-1620-C62S | -16 | 1" | 25.4mm | 2.13" | 54.0mm | 66.1mm | -20 | 1.54 lbs | |
| S-1624-C62S | -16 | 1" | 25.4mm | 2.50" | 63.5mm | 71.1mm | -24 | 1.98 lbs | |
| S-2016-C62S | -20 | 1-1/4" | 31.8mm | 1.88" | 47.6mm | 60.0mm | -16 | 1.57 lbs | |
| S-2020-C62S | -20 | 1-1/4" | 31.8mm | 2.13" | 54.0mm | 62.2mm | -20 | 1.89 lbs | |
| S-2024-C62S | -20 | 1-1/4" | 31.8mm | 2.50" | 63.5mm | 74.0mm | -24 | 2.41 lbs | |
| S-2420-C62S | -24 | 1-1/2" | 38.1mm | 2.13" | 54.0mm | 70.0mm | -20 | 2.55 lbs | |
| S-2424-C62S | -24 | 1-1/2" | 38.1mm | 2.50" | 63.5mm | 68.5mm | -24 | 2.91 lbs | |
| S-2432-C62S | -24 | 1-1/2" | 38.1mm | 3.13" | 79.4mm | 88.0mm | -32 | 4.19 lbs | |
| S-3232-C62S | -32 | 2" | 50.8mm | 3.13" | 79.4mm | 103.0mm | -32 | 5.47 lbs | |
