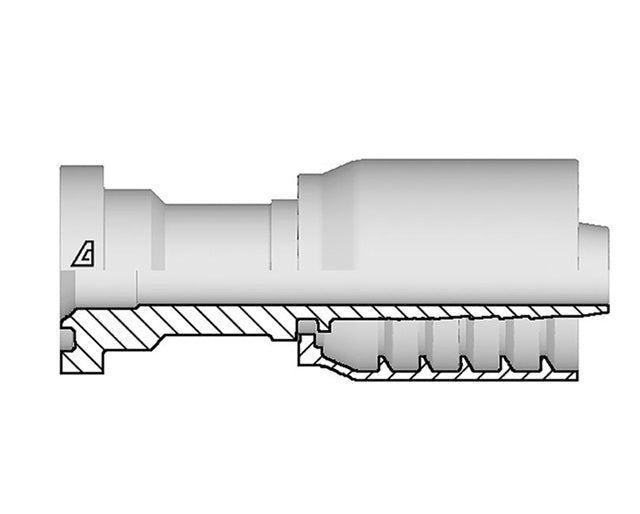

S-2020-C61S Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -20 Code 61 Flange x -20 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Code 61 Flange x Hose Barb
SAE J518
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $64.66 |
| 40–79 | $58.47 |
| 80+ | $51.59 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
Compatible Series:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | Q Flange | C Cut-Off Factor |
Flange Dash Size |
Weight | ||||
| Dash Size |
in | mm | in | mm | mm | lbs/each | |||
| S-1212-C61S | -12 | 3/4" | 19.0mm | 1.50" | 38.1mm | 39.5mm | -12 | 0.70 lbs | |
| S-1216-C61S | -12 | 3/4" | 19.0mm | 1.75" | 44.5mm | 52.0mm | -16 | 0.58 lbs | |
| S-1616-C61S | -16 | 1" | 25.4mm | 1.75" | 44.5mm | 54.1mm | -16 | 1.19 lbs | |
| S-1620-C61S | -16 | 1" | 25.4mm | 2.00" | 50.8mm | 56.6mm | -20 | 1.28 lbs | |
| S-2020-C61S | -20 | 1-1/4" | 31.8mm | 2.00" | 50.8mm | 57.5mm | -20 | 1.70 lbs | |
| S-2024-C61S | -20 | 1-1/4" | 31.8mm | 2.38" | 60.3mm | 61.5mm | -24 | 2.75 lbs | |
| S-2420-C61S | -24 | 1-1/2" | 38.1mm | 2.00" | 50.8mm | 55.5mm | -20 | 3.10 lbs | |
| S-2424-C61S | -24 | 1-1/2" | 38.1mm | 2.38" | 60.3mm | 62.5mm | -24 | 2.48 lbs | |
| S-2432-C61S | -24 | 1-1/2" | 38.1mm | 2.81" | 71.4mm | 75.0mm | -32 | 5.05 lbs | |
| S-3232-C61S | -32 | 2" | 50.8mm | 2.81" | 71.4mm | 79.2mm | -32 | 3.80 lbs | |
