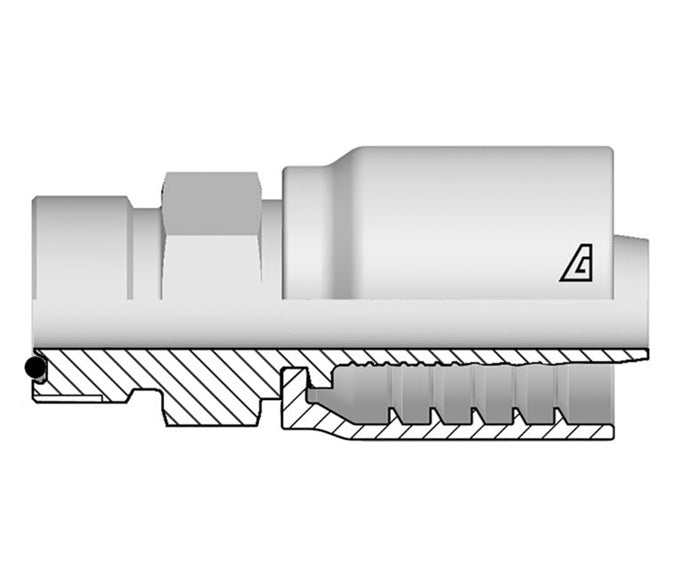

S-1642-MMSH Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | M42 Metric Male 24° Seat x -16 Hose ID | Steel

S-1642-MMSH Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | M42 Metric Male 24° Seat x -16 Hose ID | Steel

Sale price$48.72

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Metric Male 24° Seat x Hose Barb

DIN 3865 Heavy
Buy More, Save More!
Quantity Price Each
10–39 $45.80
40–79 $41.41
80+ $36.54
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • S Series
Shape:

Straight
Part Number Hose ID Size F Thread Tube
OD		 C
Cut-Off
Factor		 Hex Dia.
CH1		 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm mm lbs/each
S-1236-MMSH -12 3/4" 19.0mm -36 M36x2.0 28mm 37.6mm 36.0mm 0.74 lbs
S-1642-MMSH -16 1" 25.4mm -42 M42x2.0 30mm 51.0mm 50.0mm 1.19 lbs
S-2052-MMSH -20 1-1/4" 31.8mm -52 M52x2.0 38mm 48.0mm 55.0mm 1.98 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
