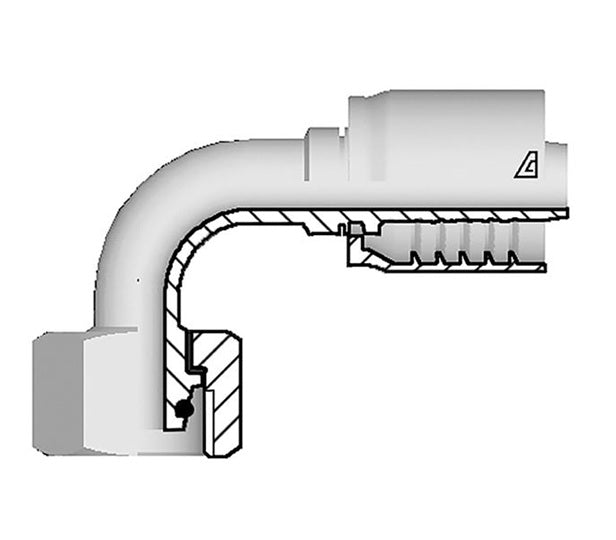

S-1642-FM9H Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Heavy | M42 Female Metric Swivel O-Ring 24° Seat x -16 Hose ID | Steel

S-1642-FM9H Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Heavy | M42 Female Metric Swivel O-Ring 24° Seat x -16 Hose ID | Steel

Sale price$73.37

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 90° Elbow | Female Metric Swivel O-Ring 24° Seat x Hose Barb

DIN 3865 Heavy
Buy More, Save More!
Quantity Price Each
10–39 $68.97
40–79 $62.36
80+ $55.03
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • S Series
Shape:

90 Degree
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 T
Thickness		 D
Drop		 Hex Dia.
CH1		 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm mm mm lbs/each
S-1236-FM9H -12 3/4" 19.0mm -36 M36x2.0 - 51.0mm 59.5mm 46mm 1.28 lbs
S-1636-FM9H -16 1" 25.4mm -36 M36x2.0 - 76.0mm 82.0mm 46mm 2.00 lbs
S-1642-FM9H -16 1" 25.4mm -42 M42x2.0 - 85.0mm 70.0mm 50mm 1.94 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
