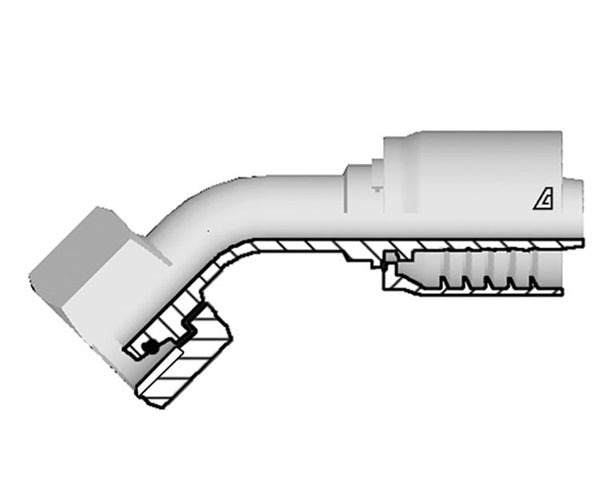

S-1642-FM4H Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | DIN 3865 Heavy | M42 Female Metric Swivel O-Ring 24° Seat x -16 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 45° Elbow | Female Metric Swivel O-Ring 24° Seat x Hose Barb
DIN 3865 Heavy
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $61.21 |
| 40–79 | $55.35 |
| 80+ | $48.84 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
45 Degree
Material(s):
Compatible Series:
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | F Thread | Tube OD |
C Cut-Off Factor |
D Drop |
Hex Dia. CH1 |
Weight | |||
| Dash Size |
in | mm | Dash Size |
Size (in) - TPI |
mm | mm | mm | mm | lbs/each | |
| S-1236-FM4H | -12 | 3/4" | 19.0mm | -36 | M36x2.0 | - | 71.0mm | 33.0mm | 46mm | 1.23 lbs |
| S-1642-FM4H | -16 | 1" | 25.4mm | -42 | M42x2.0 | - | 110.0mm | 35.5mm | 50mm | 1.87 lbs |
| S-2052-FM4H | -20 | 1-1/4" | 31.8mm | -52 | M52x2.0 | - | 111.0mm | 45.0mm | 60mm | 2.75 lbs |
