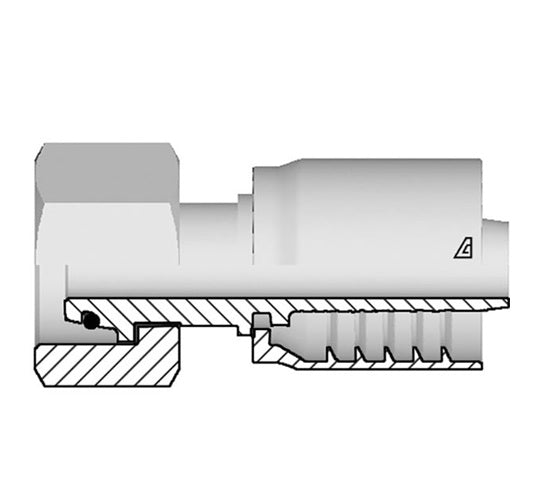

S-1236-FMOH Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | M36 Female Metric Swivel O-Ring 24° Seat x -12 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Female Metric Swivel O-Ring 24° Seat x Hose Barb
DIN 3865 Heavy
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $32.89 |
| 40–79 | $29.74 |
| 80+ | $26.24 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Material(s):
Compatible Series:
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | F Thread | Tube OD |
C Cut-Off Factor |
Hex Dia. CH1 |
Weight | ||||
| Dash Size |
in | mm | Dash Size |
Size (in) - TPI |
mm | mm | mm | lbs/each | ||
| S-1230-FMOH | -12 | 3/4" | 19.0mm | -30 | M30x2.0 | - | 37.4mm | 36mm | 0.83 lbs | |
| S-1236-FMOH | -12 | 3/4" | 19.0mm | -36 | M36x2.0 | - | 41.7mm | 46mm | 1.11 lbs | |
| S-1636-FMOH | -16 | 1" | 25.4mm | -36 | M36x2.0 | - | 46.6mm | 46mm | 1.49 lbs | |
| S-1642-FMOH | -16 | 1" | 25.4mm | -42 | M42x2.0 | - | 45.8mm | 50mm | 1.49 lbs | |
| S-2052-FMOH | -20 | 1-1/4" | 31.8mm | -52 | M52x2.0 | - | 50.0mm | 60mm | 2.31 lbs | |
