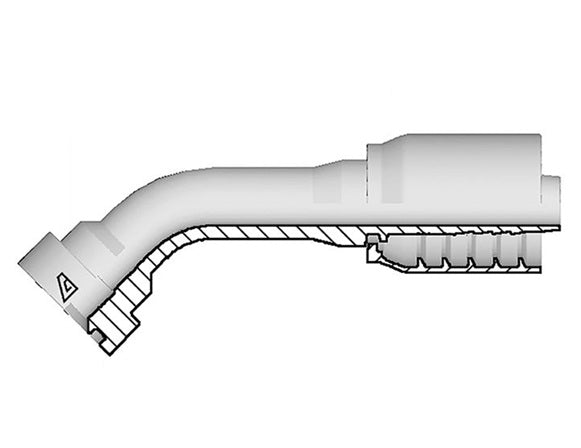

S-1216-CFL6 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 60° Elbow | -16 CAT Flange x -12 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 60° Elbow | CAT Flange x Hose Barb
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $87.29 |
| 20–59 | $78.93 |
| 60+ | $69.65 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
60 Degree
Ends Configuration:
Material(s):
Compatible Series:
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | Q Flange | C Cut-Off Factor |
T Thickness |
D Drop |
Flange Dash Size |
Weight | |||
| Dash Size |
in | mm | in | mm | mm | mm | mm | lbs/each | ||
| S-1212-CFL6 | -12 | 3/4" | 19.0mm | 1.63" | 41.3mm | 92.6mm | 14.3mm | 46.0mm | -12 | 1.36 lbs |
| S-1216-CFL6 | -12 | 3/4" | 19.0mm | 1.88" | 47.6mm | 95.6mm | 14.3mm | 48.5mm | -16 | 1.55 lbs |
| S-1616-CFL6 | -16 | 1" | 25.4mm | 1.88" | 47.6mm | 116.0mm | 14.3mm | 59.0mm | -16 | 1.99 lbs |
| S-1620-CFL6 | -16 | 1" | 25.4mm | 2.13" | 54.0mm | 116.0mm | 14.3mm | 57.0mm | -20 | 2.18 lbs |
| S-2020-CFL6 | -20 | 1-1/4" | 31.8mm | 2.13" | 54.0mm | 135.0mm | 14.3mm | 65.0mm | -20 | 3.57 lbs |
| S-2024-CFL6 | -20 | 1-1/4" | 31.8mm | 2.50" | 63.5mm | 141.0mm | 14.3mm | 67.5mm | -24 | 3.65 lbs |
