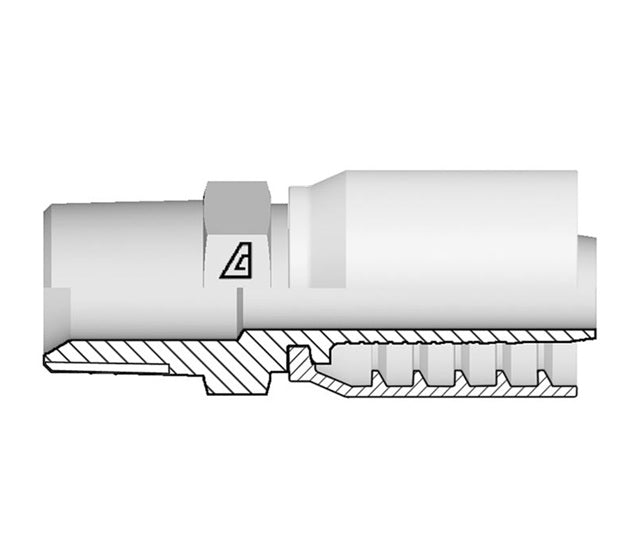

S-1212-MNPT Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Male NPTF 60° Seat x -12 Hose ID | Steel

S-1212-MNPT Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Male NPTF 60° Seat x -12 Hose ID | Steel

Sale price$32.29

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Male NPTF 60° Seat x Hose Barb
Buy More, Save More!
Quantity Price Each
10–39 $30.35
40–79 $27.45
80+ $24.22
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • S Series
Shape:

Straight
Part Number Hose ID Size F Thread C Cut-Off
Factor		 Hex Dia. CH1 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm lbs/each
S-1212-MNPT -12 3/4" 19.1mm -12 3/4-14 35.5mm 27mm 0.60 lbs
S-1616-MNPT -16 1" 25.4mm -16 1-11-1/2 44.4mm 36mm 1.06 lbs
S-2020-MNPT -20 1-1/4" 31.8mm -20 1-1/4-11-1/2 50.9mm 46mm 1.68 lbs
S-2424-MNPT -24 1-1/2" 38.1mm -24 1-1/2-11-1/2 54.5mm 50mm 2.37 lbs
S-3232-MNPT -32 2" 50.8mm -32 2-11-1/2 53.7mm 65mm 4.22 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
