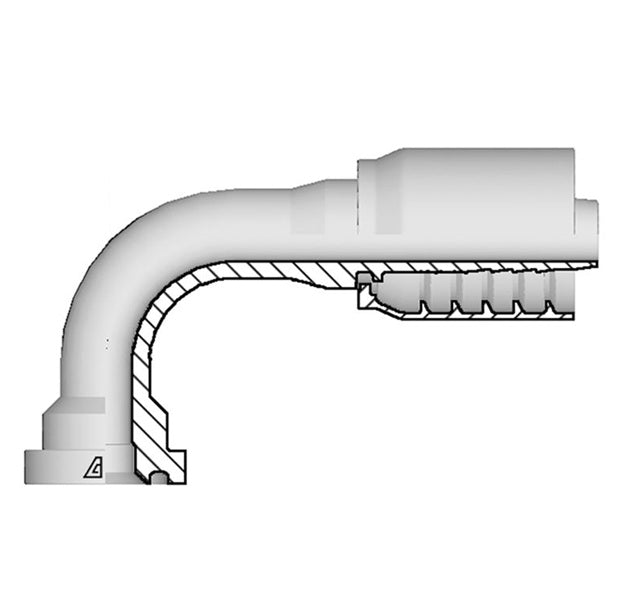

S-1212-C629 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -12 Code 62 Flange x -12 Hose ID | 6000 PSI | Steel
Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 90° Elbow | Code 62 Flange x Hose Barb
- SAE J518
- 6000 PSI
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $50.71 |
| 40–79 | $45.86 |
| 80+ | $40.46 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
Compatible Series:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | Q Flange | C Cut-Off Factor |
D Drop Factor |
Flange Dash Size |
Weight | |||
| Dash Size |
in | mm | in | mm | mm | mm | lbs/each | ||
| S-1212-C629 | -12 | 3/4" | 19.0mm | 1.63" | 41.3mm | 65mm | 64.0mm | -12 | 1.09 lbs |
| S-1216-C629 | -12 | 3/4" | 19.0mm | 1.88" | 47.6mm | 65mm | 66.0mm | -16 | 1.27 lbs |
| S-1612-C629 | -16 | 1" | 25.4mm | 1.63" | 41.3mm | 75mm | 61.0mm | -12 | 1.55 lbs |
| S-1616-C629 | -16 | 1" | 25.4mm | 1.88" | 47.6mm | 75mm | 74.0mm | -16 | 1.66 lbs |
| S-1620-C629 | -16 | 1" | 25.4mm | 2.13" | 54.0mm | 79mm | 85.0mm | -20 | 2.09 lbs |
| S-1624-C629 | -16 | 1" | 25.4mm | 2.50" | 63.5mm | 79mm | 85.0mm | -24 | 2.82 lbs |
| S-2016-C624 | -16 | 1" | 25.4mm | 1.88" | 47.6mm | - | - | -16 | 2.22 lbs |
| S-2020-C629 | -20 | 1-1/4" | 31.8mm | 2.13" | 54.0mm | 96mm | 91.0mm | -20 | 2.45 lbs |
| S-2024-C629 | -20 | 1-1/4" | 31.8mm | 2.50" | 63.5mm | 99mm | 103.5mm | -24 | 3.38 lbs |
| S-2420-C629 | -24 | 1-1/2" | 38.1mm | 2.13" | 54.0mm | 112mm | 85.0mm | -20 | 3.91 lbs |
| S-2424-C629 | -24 | 1-1/2" | 38.1mm | 2.50" | 63.5mm | 114mm | 109.0mm | -24 | 3.91 lbs |
| S-2432-C629 | -24 | 1-1/2" | 38.1mm | 3.13" | 79.4mm | 118mm | 121.5mm | -32 | 4.78 lbs |
| S-3232-C629 | -32 | 2" | 50.8mm | 3.13" | 79.4mm | 168.0mm | 134.0mm | -32 | 8.37 lbs |
