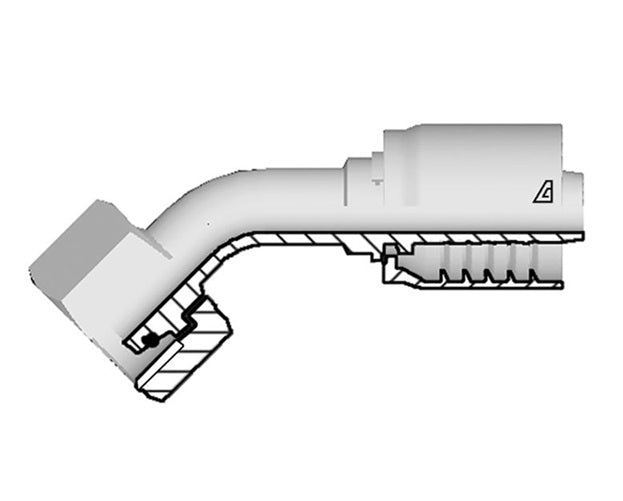

S-1026-FM4L Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | DIN 3853 Light | M26 Female Metric Swivel O-Ring 24° Seat x -10 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 45° Elbow | Female Metric Swivel O-Ring 24° Seat x Hose Barb
DIN 3853 Light
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $28.91 |
| 40–79 | $26.15 |
| 80+ | $23.07 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
45 Degree
Material(s):
Compatible Series:
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | F Thread | Tube OD |
C Cut-Off Factor |
D Drop |
Hex Dia. CH1 |
Weight | |||
| Dash Size |
in | mm | Dash Size |
Size (in) - TPI |
mm | mm | mm | mm | lbs/each | |
| S-0618-FM4L | -06 | 3/8" | 9.5mm | -18 | M18x1.5 | 12mm | 46.8mm | 19.5mm | 22mm | 0.26 lbs |
| S-0822-FM4L | -08 | 1/2" | 12.7mm | -22 | M22x1.5 | 15mm | 55.0mm | 21.0mm | 27mm | 0.38 lbs |
| S-1026-FM4L | -10 | 5/8" | 15.9mm | -26 | M26x1.5 | 18mm | 65.3mm | 24.0mm | 32mm | 0.54 lbs |
| S-1230-FM4L | -12 | 3/4" | 19.0mm | -30 | M30x2 | 22mm | 69.4mm | 32.0mm | 36mm | 0.98 lbs |
| S-1636-FM4L | -16 | 1" | 25.4mm | -36 | M36x2 | 28mm | 91.4mm | 32.0mm | 41mm | 1.17 lbs |
| S-2045-FM4L | -20 | 1-1/4" | 31.8mm | -45 | M45x2 | 35mm | 141.5mm | 45.0mm | 50mm | 1.82 lbs |
| S-2452-FM4L | -24 | 1-1/2" | 38.1mm | -52 | M52x2 | 42mm | 112.0mm | 38.0mm | 60mm | 2.77 lbs |
