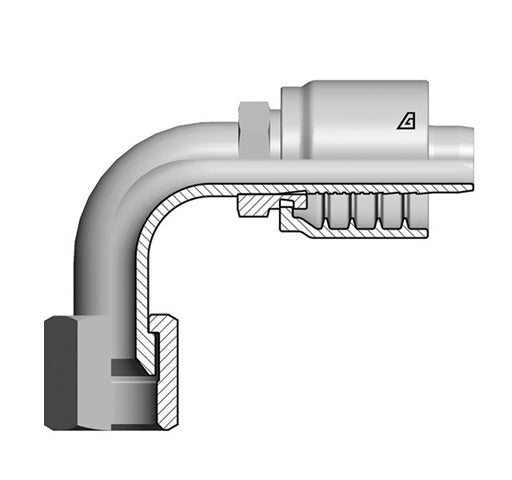

S-1012-FJ9S Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | 90° Elbow | Short Drop | -12 Female 37° JIC Swivel x -10 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | with Stem Hexagon | 90° Elbow | Short Drop | Female 37° JIC Swivel x Hose Barb
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $37.04 |
| 40–79 | $33.49 |
| 80+ | $29.55 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | F Thread | C Cut-Off Factor |
D Drop | Hex Dia. | Weight | ||||
| Dash Size |
in | mm | Dash Size |
Size (in) - TPI |
mm | in | CH mm |
CH1 mm |
lbs/each | |
| S-0606-FJ9S | -06 | 3/8" | 9.5mm | -06 | 9/16-18 | 43.0mm | 25mm | 17mm | 19mm | 0.27 lbs |
| S-0608-FJ9S | -06 | 3/8" | 9.5mm | -08 | 3/4-16 | 32.5mm | 28mm | - | 25mm | 0.29 lbs |
| S-0808-FJ9S | -08 | 1/2" | 12.7mm | -08 | 3/4-16 | 48.0mm | 29mm | 19mm | 22mm | 0.36 lbs |
| S-0810-FJ9S | -08 | 1/2" | 12.7mm | -10 | 7/8-14 | 38.0mm | 32mm | - | 27mm | 0.41 lbs |
| S-0812-FJ9S | -08 | 1/2" | 12.7mm | -12 | 1-1/16-20 | 37.3mm | 46mm | - | 32mm | 0.52 lbs |
| S-1010-FJ9S | -10 | 5/8" | 15.9mm | -10 | 7/8-14 | 43.0mm | 37mm | 24mm | 27mm | 0.62 lbs |
| S-1012-FJ9S | -10 | 5/8" | 15.9mm | -10 | 1-1/16-20 | 48.0mm | 48mm | - | 32mm | 0.64 lbs |
| S-1212-FJ9S | -12 | 3/4" | 19.1mm | -12 | 1-1/16-12 | 64.0mm | 48mm | 27mm | 32mm | 0.95 lbs |
| S-1216-FJ9S | -12 | 3/4" | 19.1mm | -16 | 1-5/16-12 | 53.6mm | 53mm | - | 38mm | 0.96 lbs |
| S-1616-FJ9S | -16 | 1" | 25.4mm | -16 | 1-5/16-12 | 87.0mm | 56mm | 36mm | 41mm | 1.74 lbs |
