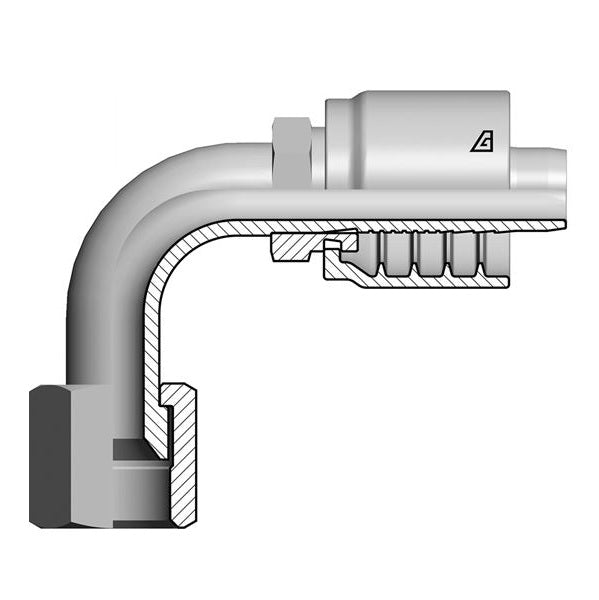

S-1012-FJ9M Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | 90° Elbow | Medium Drop | -12 Female 37° JIC Swivel x -10 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | with Stem Hexagon | 90° Elbow | Medium Drop | Female 37° JIC Swivel x Hose Barb
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $37.06 |
| 40–79 | $33.52 |
| 80+ | $29.57 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | F Thread | C Cut-Off Factor |
D Drop | Hex Dia. | Weight | ||||
| Dash Size |
in | mm | Dash Size |
Size (in) - TPI |
mm | in | CH mm |
CH1 mm |
lbs/each | |
| S-0606-FJ9M | -06 | 3/8" | 9.5mm | -06 | 9/16-18 | 43.0mm | 38mm | 17mm | 19mm | 0.29 lbs |
| S-0608-FJ9M | -06 | 3/8" | 9.5mm | -08 | 3/4-16 | 39.5mm | 41mm | - | 25mm | 0.31 lbs |
| S-0808-FJ9M | -08 | 1/2" | 12.7mm | -08 | 3/4-16 | 50.0mm | 41mm | 19mm | 22mm | 0.38 lbs |
| S-0810-FJ9M | -08 | 1/2" | 12.7mm | -10 | 7/8-14 | 43.3mm | 47mm | - | 27mm | 0.44 lbs |
| S-0812-FJ9M | -08 | 1/2" | 12.7mm | -12 | 1-1/16-20 | 42.8mm | 58mm | - | 32mm | 0.49 lbs |
| S-1010-FJ9M | -10 | 5/8" | 15.9mm | -10 | 7/8-14 | 50.0mm | 47mm | 24mm | 27mm | 0.64 lbs |
| S-1012-FJ9M | -10 | 5/8" | 15.9mm | -10 | 1-1/16-20 | 47.9mm | 58mm | - | 32mm | 0.66 lbs |
| S-1212-FJ9M | -12 | 3/4" | 19.1mm | -12 | 1-1/16-12 | 54.0mm | 58mm | 27mm | 32mm | 0.95 lbs |
| S-1214-FJ9M | -12 | 3/4" | 19.1mm | -14 | 1-3/16-12 | 52.6mm | 56mm | - | 36mm | 0.95 lbs |
| S-1216-FJ9M | -12 | 3/4" | 19.1mm | -16 | 1-5/16-12 | 52.6mm | 72mm | - | 38mm | 1.03 lbs |
| S-1616-FJ9M | -16 | 1" | 25.4mm | -16 | 1-5/16-12 | 72.0mm | 71mm | 36mm | 41mm | 1.73 lbs |
| S-1620-FJ9M | -16 | 1" | 25.4mm | -20 | 1-5/8-12 | 72.6mm | 78mm | - | 50mm | 1.91 lbs |
| S-2020-FJ9M | -20 | 1-1/4" | 31.8mm | -20 | 1-5/8-12 | 84.0mm | 78mm | - | 50mm | 2.45 lbs |
| S-2424-FJ9M | -24 | 1-1/2" | 38.1mm | -24 | 1-7/8-12 | 104.0mm | 92mm | - | 55mm | 3.64 lbs |
| S-3232-FJ9M | -32 | 2" | 50.8mm | -32 | 2-1/2-12 | 147.5mm | 135mm | - | 70mm | 4.91 lbs |
