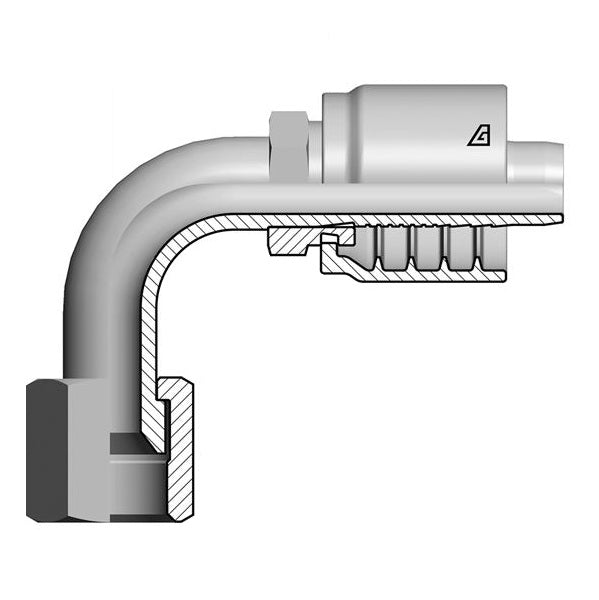

S-1010-FJ9L Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | 90° Elbow | Long Drop | -10 Female 37° JIC Swivel x -10 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | with Stem Hexagon | 90° Elbow | Long Drop | Female 37° JIC Swivel x Hose Barb
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $36.47 |
| 40–79 | $32.98 |
| 80+ | $29.10 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | F Thread | C Cut-Off Factor |
D Drop | Hex Dia. | Weight | ||||
| Dash Size |
in | mm | Dash Size |
Size (in) - TPI |
mm | in | CH mm |
CH1 mm |
lbs/each | |
| S-0606-FJ9L | -06 | 3/8" | 9.5mm | -06 | 9/16-18 | 43.0mm | 54mm | 17mm | 19mm | 0.29 lbs |
| S-0808-FJ9L | -08 | 1/2" | 12.7mm | -08 | 3/4-16 | 50.0mm | 64mm | 19mm | 22mm | 0.40 lbs |
| S-1010-FJ9L | -10 | 5/8" | 15.9mm | -10 | 7/8-14 | 50.0mm | 70mm | 24mm | 27mm | 0.69 lbs |
| S-1212-FJ9L | -12 | 3/4" | 19.1mm | -12 | 1-1/16-12 | 54.0mm | 96mm | 27mm | 32mm | 1.06 lbs |
| S-1616-FJ9L | -16 | 1" | 25.4mm | -16 | 1-5/16-12 | 72mm | 114mm | 36mm | 41mm | 1.94 lbs |
