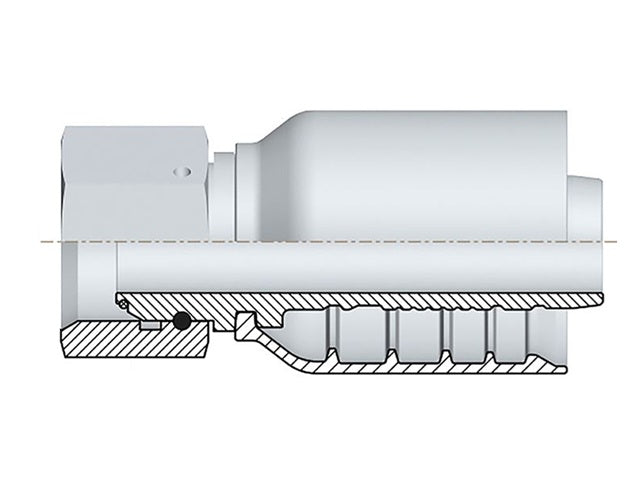

S-0606-FBPO Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -06 Female BSP O-Ring Female Swivel 60° Cone x -06 Hose ID | Steel

S-0606-FBPO Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -06 Female BSP O-Ring Female Swivel 60° Cone x -06 Hose ID | Steel

Sale price$13.24

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Female BSP O-Ring Female Swivel 60° Cone x Hose Barb
Buy More, Save More!
Quantity Price Each
10–39 $12.45
40–79 $11.25
80+ $9.93
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • S Series
Shape:

Straight
Part Number Hose ID Size F Thread C Cut-Off
Factor		 Hex Dia.
CH1		 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm lbs/each
S-0606-FBPO -06 3/8" 9.5mm -06 3/8-19 17.0 22mm 0.20 lbs
S-0808-FBPO -08 1/2" 12.7mm -08 1/2-14 18.0 27mm 0.29 lbs
S-1212-FBPO -12 3/4" 19.1mm -12 3/4-14 25.8mm 32mm 0.62 lbs
S-1616-FBPO -16 1" 25.4mm -16 1-11 31.6mm 38mm 0.97 lbs
S-2424-FBPO -24 1-1/2" 38.1mm -24 1-1/2-11 37.8mm 55mm 2.56 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
