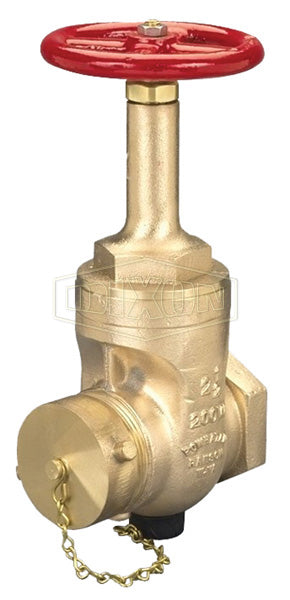

RWDGV250F Dixon Rising Stem Wedge Disc Gate Valve - 2-1/2" Female NPT Inlet x 2-1/2" Male NST(NH) Outlet - 200 PSI

RWDGV250F Dixon Rising Stem Wedge Disc Gate Valve - 2-1/2" Female NPT Inlet x 2-1/2" Male NST(NH) Outlet - 200 PSI

Sale price$839.30

Dixon Fire Fittings
Rising Stem Wedge Disc Gate Valves - Cast Brass
Buy More, Save More!
Quantity Price Each
5–14 $788.94
15–29 $713.41
30+ $629.48
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 2-1/2in Female NPT
  • 2-1/2in Male NST
Material(s):
  • Brass
Features:
  • Solid wedge disc with tapered seats.
  • Red handwheel, with brass cap and chain.
  • Note: ONLY 3" is Underwriters Listed.
  • Not recommended for wet standpipe systems. Use AV250 for wet standpipe systems.
Size A B Closed C D Closed D Open
2-1/2" 6-1/2" 11" 2-1/2" 13-1/2" 16-1/4"
3" x 2-1/2 6-3/16" 11" 2-1/2" 13-1/2" 16-1/4"
Part Number Female NPT Inlet Male NST (NH) Outlet U/L Working Pressure
at 70 deg. F		 Weight
(Lbs.)
RWDGV250F 2-1/2" 2-1/2" No 200 PSI 19.0000
RWDGV3025F 3" 2-1/2" Yes 300 PSI 23.8000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
