RTA15S1-4.0-200 by Texcel | GAMMA™-RED TANK Series | Tank Truck Hose | 4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Red
Buy more, save moreDiscounts applied in cart/checkout.
Petroleum Hose

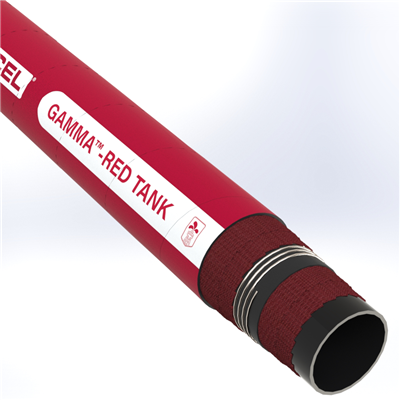

GAMMA™-RED TANK Tank Truck Hose
The industry standard for tank truck, in-plant and oilfield loading operations requiring a strong yet flexible hose.
1
What is this hose used for?
- Tank trucks
- In-plant loading
- Oilfield loading
2
What are the key specifications?
Tube
Black, nitrile, 55% aromatics (ORS)
Cover
Red, neoprene (smooth)
Reinforcement
High tensile tire cord plies; dual helix wire
Temperature Range
-40°F to +180°F
Safety Factor
4:1
Branding
TEXCEL® GAMMA™-RED TANK - RED TANK TRUCK HOSE 150 PSI W.P.
3
What are the main product features?
- Red cover — for easy identification.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| RTA15S1-2.0-200 | 2" | 2-29/64" | 150 | 29 | 8" | 1.10 |
| RTA15S1-3.0-200 | 3" | 3-32/64" | 150 | 29 | 13" | 1.79 |
| RTA15S1-4.0-200 | 4" | 4-36/64" | 150 | 29 | 19" | 2.64 |
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
