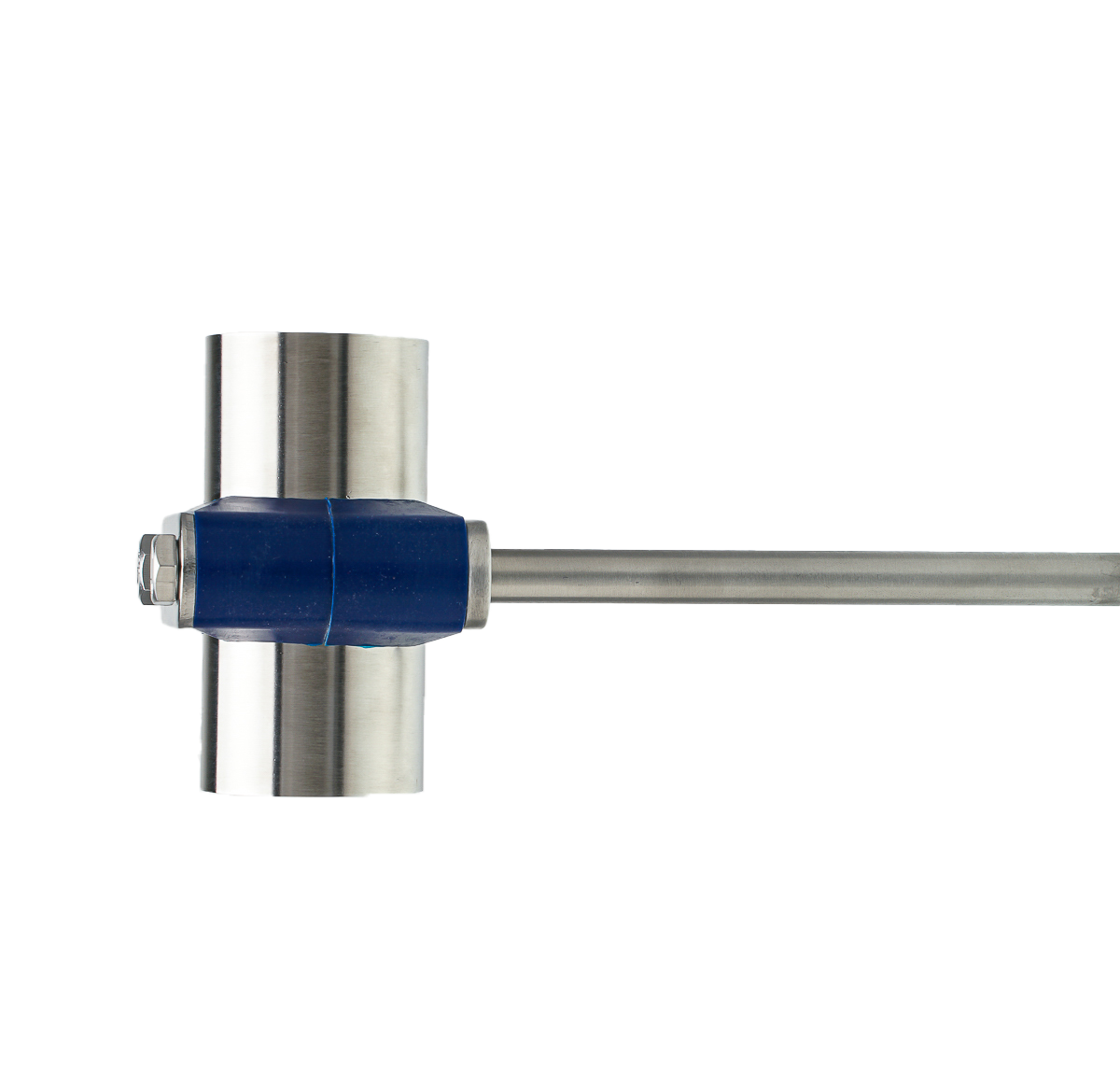

RHM-125P-304ZPG by ACL Hygienic | Zero Puddle Silicone Rod/Horizontal Mount w/ Guided Loose Fit | 1-1/4" Pipe Size | 3/8" Rod OD x 6" Rod Length | Blue | 304 Stainless Steel

RHM-125P-304ZPG by ACL Hygienic | Zero Puddle Silicone Rod/Horizontal Mount w/ Guided Loose Fit | 1-1/4" Pipe Size | 3/8" Rod OD x 6" Rod Length | Blue | 304 Stainless Steel

Sale price$66.68

ACL Hygienic
Sanitary, Washdown, and Pipe Hanging Systems:Pipe Hanging Systems - Rod Mount - 6” Rod to Weld Plate Mount
Buy More, Save More!
Quantity Price Each
10–39 $62.68
40–79 $56.68
80+ $50.01
Discounts applied in cart/checkout.

Product Data:

Shape:

["Straight"]

Material(s):
  • Silicone
  • 304 Stainless Steel
Applications:
  • Cleanrooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing, beverage, dairy, cosmetic, chemical, water treatment, and semiconductor industries.
  • Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines, WFI, SIP, CIP, process, utilities & instrument lines
Sizes:
  • Support Range: 1/4" – 6" Tube and 1/2" – 6" Pipe for Copper and Conduits including PVC Coated Pipe
  • Tight fit Anchors and loose fit Guides are offered
Features:
  • Reduced OD allows hanger to be encased under the insulation’s jacket
  • ZERO PUDDLE Silicones inserts raised geometry facilitates drainage of liquids on vertical/riser lines creating maintenance uptime
  • There are no exposed threads or openings
Materials:
  • 304 and 316 stainless steels
  • ZERO PUDDLE inserts are FDA grade silicone rubber
Specifications:
  • Intermittent temperatures from -40F to 320F
  • Continues temperatures from -20F to 302F
Benefits:
  • Guides loose fit allow the line to freely expand and contract during thermal cycling, preventing undo stress to welds
  • Hanger’s threaded section is elongated, increasing the housing’s elevation adjustment aiding in slope alignment
  • Insulation Envelope “IE”: Reduced OD allows hanger to be buried under the insulation jacket
  • Insulation Thickness: Line’s ODs are Encased Under Insulation
    • 1.0” of insulation : 1/2” Tube (0.5”) to 3” Copper (3.125”)
    • 1.5” of insulation : 3” Pipe (3.5”) to 4” Pipe (4.50”)
    • 2.0” of insulation : 6” Tube (6.0”) to 6” Pipe (6.625”)
  • There are no exposed threads or openings in hardware plates
  • All plates are cleaned polished
  • Hanger threads match MSS 69 rod OD requirement
Rod Mount - 6” Rod to Weld Plate Mount: (rod lengths also supplied per specification)
Part Number
(anchor/tight fit)		 Part Number
(guide/loose fit)		 Pipe Size Line OD H L W CL Rod (stock length)
Height Thread
RHM-050P-304ZP RHM-050P-304ZPG 1/2" 0.84" 1.73" 1.93" 0.75" 0.79" 6" 0.375
RHM-075P-304ZP RHM-075P-304ZPG 3/4" 1.05" 1.73" 1.93" 0.75" 0.79" 6" 0.375
RHM-100P-304ZP RHM-100P-304ZPG 1" 1.375" 2.23" 2.49" 0.75" 1.03" 6" 0.375
RHM-125P-304ZP RHM-125P-304ZPG 1-1/4" 1.66" 2.23" 2.99" 0.88" 1.31" 6" 0.375
RHM-150P-304ZP RHM-150P-304ZPG 1-1/2" 1.90" 2.75" 2.99" 0.88" 1.31" 6" 0.375
RHM-200P-304ZP RHM-200P-304ZPG 2" 2.375" 2.25" 3.36" .88" 1.55" 6" 0.50
RHM-250P-304ZP RHM-250P-304ZPG 2-1/2" 2.875" 3.68" 3.74" 0.88" 1.77" 6" 0.50
RHM-300P-304ZP RHM-300P-304ZPG 3" 3.50" 4.15" 4.48" 1" 2.06" 6" 0.50
RHM-400P-304ZP RHM-400P-304ZPG 4" 4.50" 5.27" 5.10" 1" 2.58" 6" 0.50
