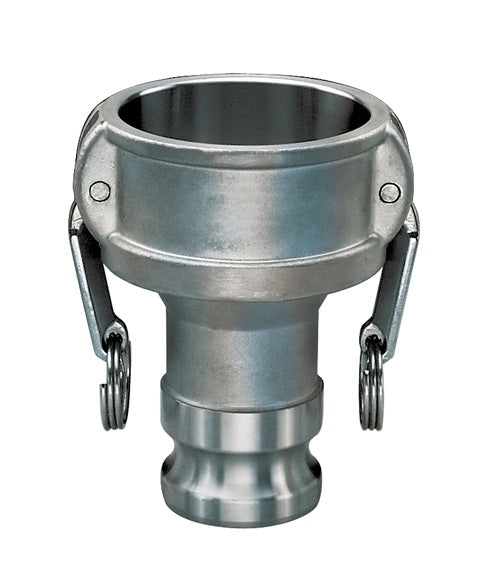

RDA-SS6040 by Kuriyama | RDA-SS Series | Part DA | Cam & Groove Adapter | 6" Coupler x 4" Adapter | 316 Stainless Steel
Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Reducing Coupler x Adapter - 316 Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $381.01 |
| 15–29 | $344.53 |
| 30+ | $304.00 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
Seal Material(s):
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
- An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
- The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.
What are the Materials?
- ASTM stainless steel alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability.
- 304 stainless steel handles, handle pins, pull rings, and safety clips.
- Buna-N gasket included.
| Part Number | Female Coupler Size (in) |
Male Adapter Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|---|
| RDA-SS2010 | 2" | 1" | 150 PSI | A666/316 | 2.73 lbs |
| RDA-SS2030 | 2" | 3" | 150 PSI | A666/316 | 3.45 lbs |
| RDA-SS3020 | 3" | 2" | 150 PSI | A666/316 | 4.08 lbs |
| RDA-SS4030 | 4" | 3" | 150 PSI | A666/316 | 6.41 lbs |
| RDA-SS6040 | 6" | 4" | 150 PSI | A666/316 | 12.10 lbs |
