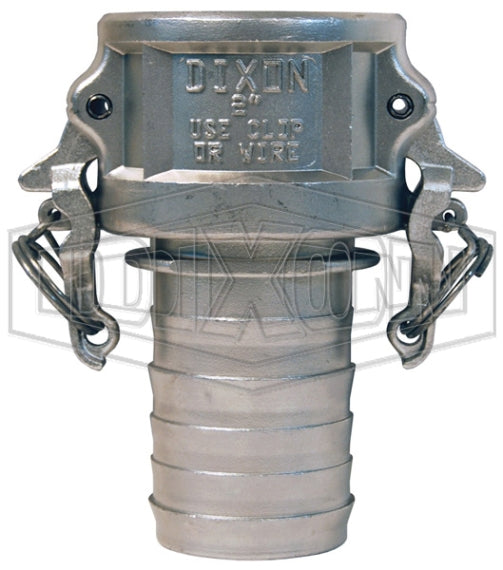

RC150BLNO by Dixon Valve | Boss-Lock Cam & Groove Coupler | Type C | 1-1/2" Coupler x 1-1/2" Notched Hose Shank | 316 Stainless Steel

RC150BLNO by Dixon Valve | Boss-Lock Cam & Groove Coupler | Type C | 1-1/2" Coupler x 1-1/2" Notched Hose Shank | 316 Stainless Steel

Sale price$109.53
In Stock - Ready to Ship
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • System allows you to better manage your inventories, you can stock one coupling and two ferrules, and cover the same hose range with less inventory, you must purchase a fitting and the matching ferrule to create an assembly.
  • Use with Notched Ferrules.
Construction:
  • Nitrile Rubber gasket
  • Boss-Lock cam arms
  • Supplied with pull-ring safety clips
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Dixon stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturer's stems or ferrules with Dixon products.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard Nitrile Rubber Seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • You must purchase a fitting and the matching ferrule to create an assembly.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
316 Stainless Steel
Part Number		 Size Max. Operating Pressure
RC150BLNO 1-1/2" 250 PSI
RC200BLNO 2" 250 PSI
RC300BLNO 3" 125 PSI
RC400BLNO 4" 100 PSI

Additional Product Data:

Brand:
  • Boss-Lock
MAWP:

250

Shape:

Straight

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
