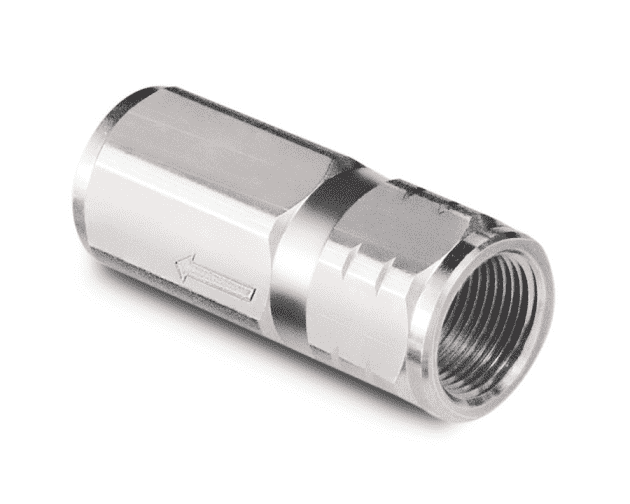

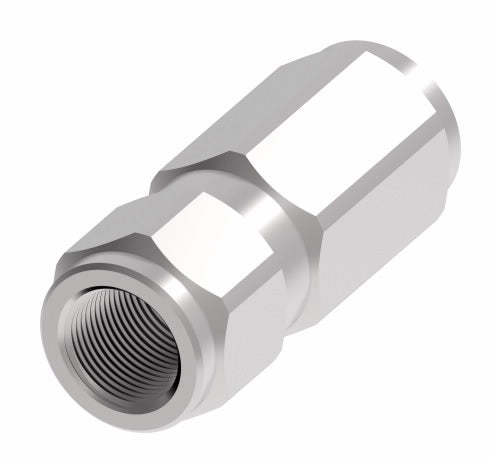

RA0423000 Hansen® by Danfoss | Quick Disconnect Check Valve | R4000 Series | 1/2" Female NPTF x 1/2" Body Size | Cracking Pressure: 0.5 bar (7.25 psi) | NBR Seal | Steel
RA0423000 Hansen® by Danfoss | Quick Disconnect Check Valve | R4000 Series | 1/2" Female NPTF x 1/2" Body Size | Cracking Pressure: 0.5 bar (7.25 psi) | NBR Seal | Steel
RA0423000 Hansen® by Danfoss | Quick Disconnect Check Valve | R4000 Series | 1/2" Female NPTF x 1/2" Body Size | Cracking Pressure: 0.5 bar (7.25 psi) | NBR Seal | Steel
RA0423000 Hansen® by Danfoss | Quick Disconnect Check Valve | R4000 Series | 1/2" Female NPTF x 1/2" Body Size | Cracking Pressure: 0.5 bar (7.25 psi) | NBR Seal | Steel

RA0423000 Hansen® by Danfoss | Quick Disconnect Check Valve | R4000 Series | 1/2" Female NPTF x 1/2" Body Size | Cracking Pressure: 0.5 bar (7.25 psi) | NBR Seal | Steel

Sale price$55.42
Buy more, save moreDiscounts applied in cart/checkout.
Operating Guidelines:
  • The Danfoss R4000 series is designed to handle liquids. Should applications involving gases (but not unstable gases) be considered, the user should certify that sonic frequencies will not exceed 1 Hz (one cycle per second).
Applications & Markets:
  • All Industries
  • Agriculture
  • Construction
  • Fluid Transfer Lines
Materials:
  • Standard body material: Zinc-plated steel.
  • Standard seal materials: Nitrile (NBR): -4°F +212°F/-20°C +100°C**
    FKM (Fluorocarbon): -4°F +392°F/-20°C +200°C** also available.
European Pressure Equipment Directive:
  • Check valves with nominal diameters up to and including 25 mm are designed and manufactured under Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU. Check valves with nominal diameters greater than 25 mm are designed and manufactured with the stipulations of Module A of the European Pressure Equipment Directive PED 2014/68/EU. They should not be used to convey unstable gases. Our series R4000 check valves must not be used as safety devices (as per PED 2014/68/EU).

**For reference only, based on Danfoss recommended temperatures.

Body Size Nominal Flow Diameter Max. Operating Pressure** Rated Flow*
Non hazardous liquids & gases in Group 2 Hazardous liquids & gases in Group 1
bar psi bar psi L/min gpm
1/8" 3.8mm 700 bar 10,150 psi 700 bar 10,150 psi 4.5 L/min 1.19 gpm
1/4" 5.7mm 700 bar 10,150 psi 700 bar 10,150 psi 14.2 L/min 3.75 gpm
3/8" 7.6mm 700 bar 10,150 psi 700 bar 10,150 psi 22 L/min 5.81 gpm
1/2" 10.3mm 500 bar 7,250 psi 500 bar 7,250 psi 32 L/min 8.45 gpm
3/4" 14.2mm 500 bar 7,250 psi 500 bar 7,250 psi 72 L/min 19 gpm
1" 16.5mm 500 bar 7,250 psi 500 bar 7,250 psi 117 L/min 30.9 gpm
1-1/4" 20.5mm 300 bar 4,350 psi 300 bar 4,350 psi 188 L/min 49.66 gpm
1-1/2" 25.8mm 300 bar 4,350 psi 38 bar 550 psi 232 L/min 61.29 gpm
2" 34.7mm 300 bar 4,350 psi 28 bar 405 psi 393 L/min 103.81 gpm

*Indicated values refer to a 1 bar/14.5 psi pressure drop.
**Group 1 = Hazardous media / Group 2 = Other media
Cracking Pressure 0.5 bar (7.25 psi)
Part Number Size Thread NPTF Dimensions Rated Pressure
NBR FKM A Hex psi bar
RA0421000 - 1/4" 1/4-18 Female NPTF 1.97" 0.75" 10,150 psi 700 bar
RA0422000 - 3/8" 3/8-18" Female NPTF 2.36" 0.91" 10,150 psi 700 bar
RA0423000 - 1/2" 1/2-14 Female NPTF 2.76" 1.06" 7,250 psi 500 bar
RA0424000 - 3/4" 3/4-14 Female NPTF 3.39" 1.38" 7,250 psi 500 bar
RA0425000 - 1" 1-11-1/2 Female NPTF 3.94" 1.62" 7,250 psi 500 bar
- RA04290V0 2" 2-11-1/2 Female NPTF 5.91" 2.95" 4,350 psi 300 bar

Additional Product Data:

Brand:
  • Hansen
Series:
  • R4000 Series
Shape:

Straight
