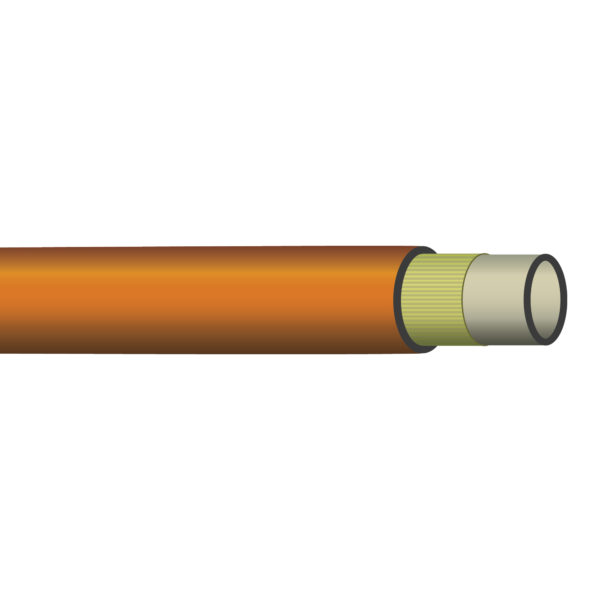

R8-06-NC by Kurt Hydraulics | R8-NC Series | 0.375in ID x 0.645in ID | 4000 MAWP | Non-Conductive Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R8 | Orange | 250ft Reel

R8-06-NC by Kurt Hydraulics | R8-NC Series | 0.375in ID x 0.645in ID | 4000 MAWP | Non-Conductive Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R8 | Orange | 250ft Reel

Sale price$1,415.76

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 250 Feet

Buy More, Save More!
Quantity Price Each
4–7 $1,330.81
8–14 $1,274.18
15+ $1,132.61
Discounts applied in cart/checkout.

Product Data:

Series:
  • R8-NC Series
Color(s):
  • Orange
Dash Size:
  • -06

Recommended for: High pressure non-conductive hydraulic oil lines
Tube: Thermoplastic
Reinforcement: Two synthetic fiber braids
Cover: Abrasion, ozone and weather resistant orange urethane
Temperature Range: -40°F to +212°F

Part Number Hose I.D. (in.) Hose O.D. (in.) Rated W.P. (psi) Min. Burst (psi) Min. Bend (in.)
R8-03-NC 3/16 0.41 5,000 20,000 2.0
R8-04-NC 1/4 0.49 5,000 20,000 2.5
R8-06-NC 3/8 0.65 4,000 16,000 3.5
R8-08-NC 1/2 0.76 3,500 14,000 5.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
