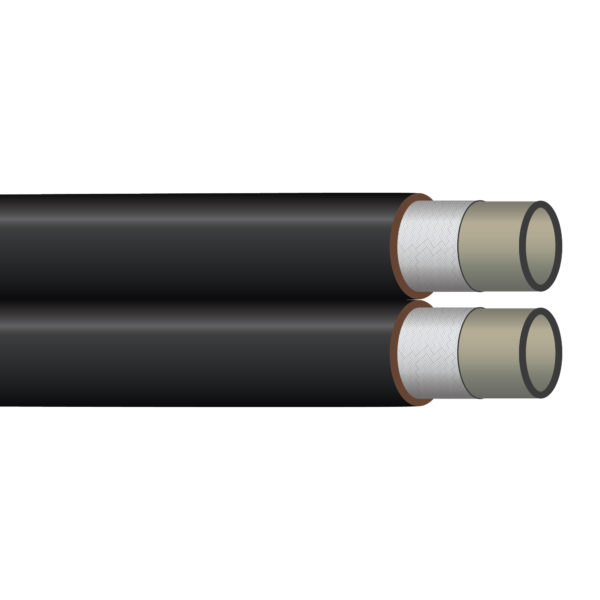

R8-04-TW by Kurt Hydraulics | R8 Series | 0.25in ID x 0.485in ID | 5000 MAWP | Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R8 | Black | 250ft Reel

R8-04-TW by Kurt Hydraulics | R8 Series | 0.25in ID x 0.485in ID | 5000 MAWP | Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R8 | Black | 250ft Reel

Sale price$2,148.61

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 250 Feet

Buy More, Save More!
Quantity Price Each
4–7 $2,019.69
8–14 $1,933.75
15+ $1,718.89
Discounts applied in cart/checkout.

Product Data:

Series:
  • R8 Series
Color(s):
  • Black
Dash Size:
  • -04

Recommended for: High pressure hydraulic oil lines for twin line applications
Tube: Thermoplastic
Reinforcement: Two synthetic fiber braids
Cover: Abrasion, ozone and weather resistant black urethane
Temperature Range: -40°F to +212°F

Part Number Hose I.D. (in.) Hose O.D. (in.) Rated W.P. (psi) Min. Burst (psi) Min. Bend (in.)
R8-04-TW 1/4 0.49 5,000 20,000 2.5
R8-06-TW 3/8 0.65 4,000 16,000 3.5
R8-08-TW 1/2 0.76 3,500 14,000 5.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
